V7C00004
ActivePasternack

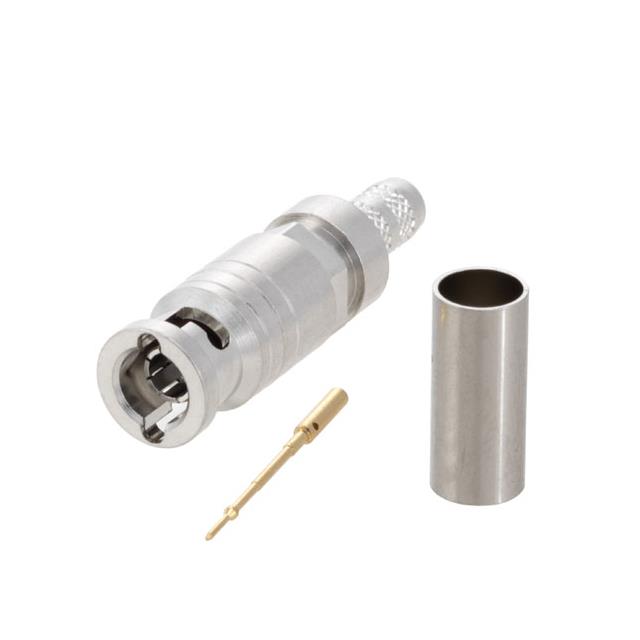

ULTRA TINY BNC PLUG FOR 1855A
V7C00004
ActivePasternack
ULTRA TINY BNC PLUG FOR 1855A
Description
General part information
V7C00004
BNC Connector Plug, Male Pin 75 Ohms Free Hanging (In-Line) Crimp
Technical Specifications
Parameters and characteristics for this part
| Specification | V7C00004 |
|---|---|
| Body Finish | Nickel |
| Body Material | Brass |
| Cable Group | Belden 1855A |
| Center Contact Material | Beryllium Copper |
| Center Contact Plating | Nickel, Gold |
| Connector Style | BNC |
| Connector Type | Male Pin, Plug |
| Contact Termination | Crimp |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 12 Gbps |
| Housing Color | Silver |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Number of Ports | 1 |
| Operating Temperature (Max) | 165 °C |
| Operating Temperature (Min) | -65 °C |
| Shield Termination | Crimp |
| Voltage Rating | 500 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
