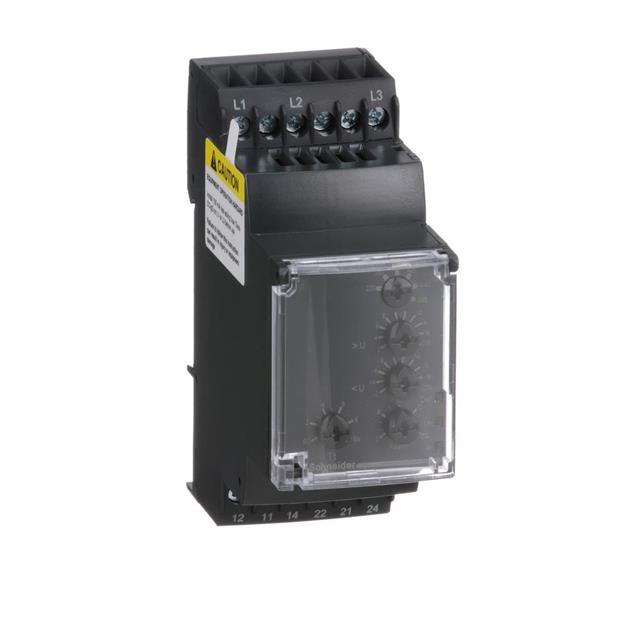

RM35TF30
ActiveSCHNEIDER ELECTRIC
RELAY, 3 PH, DPDT, 194VAC, 528VAC
RM35TF30
ActiveSCHNEIDER ELECTRIC
RELAY, 3 PH, DPDT, 194VAC, 528VAC
Description
General part information
RM35TF30
Voltage Asymmetry, Voltage Sensing AC, Phase Loss, Phase Sequence 220 ~ 480VAC
Technical Specifications
Parameters and characteristics for this part
| Specification | RM35TF30 |
|---|---|
| Circuit | DPDT (2 Form C) |
| Contact Rating (Current) | 5 A |
| Delay Time (Maximum) | 10 Sec |
| Delay Time (Minimum) | 0.1 Sec |
| Mounting Type | DIN Rail |
| Operating Temperature (Max) | 50 °C |
| Operating Temperature (Min) | -20 °C |
| Output Type | Relay |
| Trip Status | Low, Energized High |
| Trip Voltage (Max) | 480 V |
| Trip Voltage (Min) | 220 V |
| Type | Phase Sequence, Voltage Asymmetry, Phase Loss, Voltage Sensing AC |
| Voltage - Supply (Maximum) | 480 VAC |
| Voltage - Supply (Minimum) | 220 V |
| Voltage Rating | 250VAC, 250VDC |
