Description
General part information
DAK-89

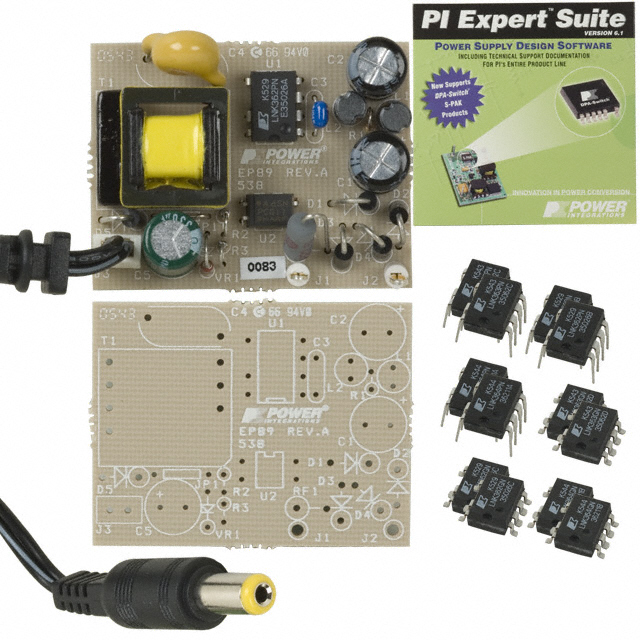

LNK362, LNK363, LNK364 LinkSwitch®-XT AC/DC, Primary Side 1, Isolated Outputs Evaluation Board
Technical Specifications
Parameters and characteristics for this part
| Specification | DAK-89 |
|---|---|
| Board Type | Fully Populated, Bare (Unpopulated) |
| Contents | Board |
| Current - Output | 322 mA |
| Isolated Output Count | 1 |
| Main Purpose | Primary Side, AC/DC |
| Output Type | Isolated |
| Power - Output | 2 W |
| Regulator Topology | Flyback |
| Supplied Contents | Board(s) |
| Total Output Count | 1 |
| Utilized IC / Part | LNK363, LNK364, LNK362 |
| Voltage - Input (AC) Maximum | 265 VAC |
| Voltage - Input (AC) Minimum | 85 VAC |
| Voltage - Output | 6.2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
No documents available
