LCCA30650-FT1
ActivePasternack
COAX CBL N-TYPE TO TNC 12"
LCCA30650-FT1
ActivePasternack
COAX CBL N-TYPE TO TNC 12"
Description
General part information
LCCA30650-FT1

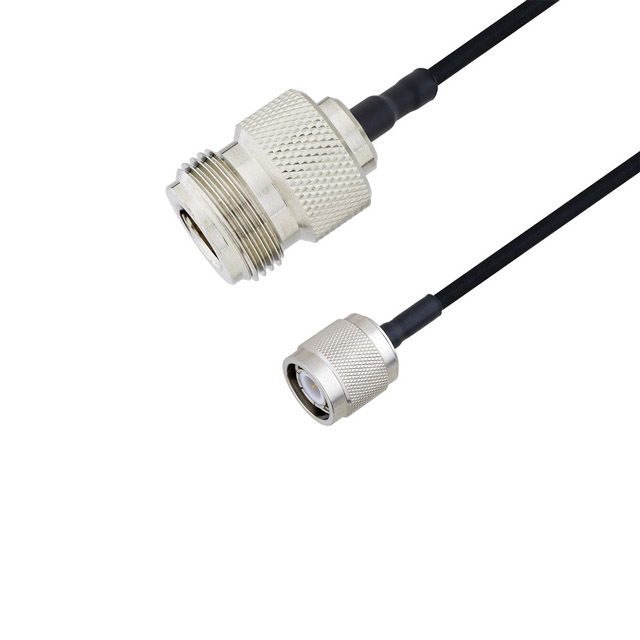

Cable Assembly Coaxial N-Type to TNC LC085TBJ 12.00" (304.80mm)
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30650-FT1 |
|---|---|
| 1st Connector | N-Type Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | TNC Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TBJ |
| Color | Black |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 6000 MHz |
| Length | 12 in |
| Overall Impedance | 50 Ohms |
| Style | N-Type, TNC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
