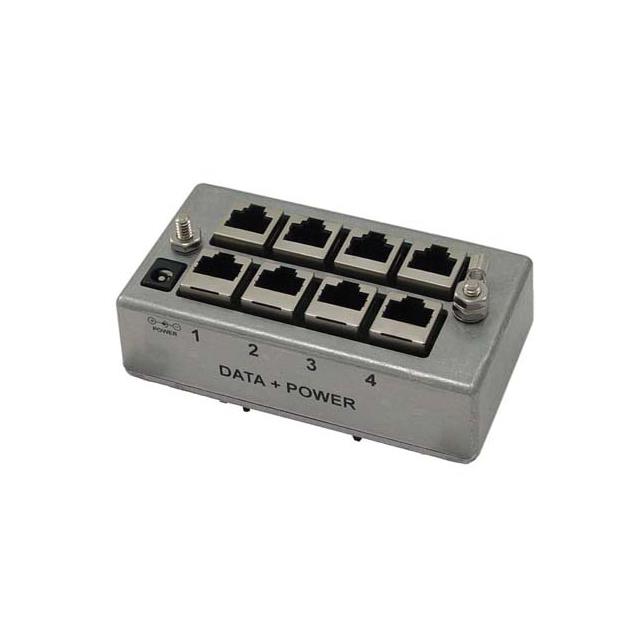

BTD-CAT6-P4
ActivePasternack
INJDIN DC PWR CAT6 5-48 VDC
BTD-CAT6-P4
ActivePasternack
INJDIN DC PWR CAT6 5-48 VDC
Description
General part information
BTD-CAT6-P4
48V Power Over Ethernet (POE) 1 Port Midspan Injector 10/100/1000 Mbps Data Rate
Technical Specifications
Parameters and characteristics for this part
| Specification | BTD-CAT6-P4 |
|---|---|
| Current - Output | 1.45 A |
| Input Connector | RJ45 (Data, Power), Receptacle (Power) |
| Input Connector Size | 2.5 mm |
| Maximum Data Rate | 1000 Mbps |
| Minimum Data Rate | 10 Mbps |
| Mounting Type | DIN Rail |
| Number of Ports | 1 |
| Output Connector | Power), RJ45 (Data |
| Power (Watts) - Per Port | 70 W |
| Type | Midspan Injector |
| Typical Data Rate | 100 Mbps |
| Voltage - Output | 48 V |
