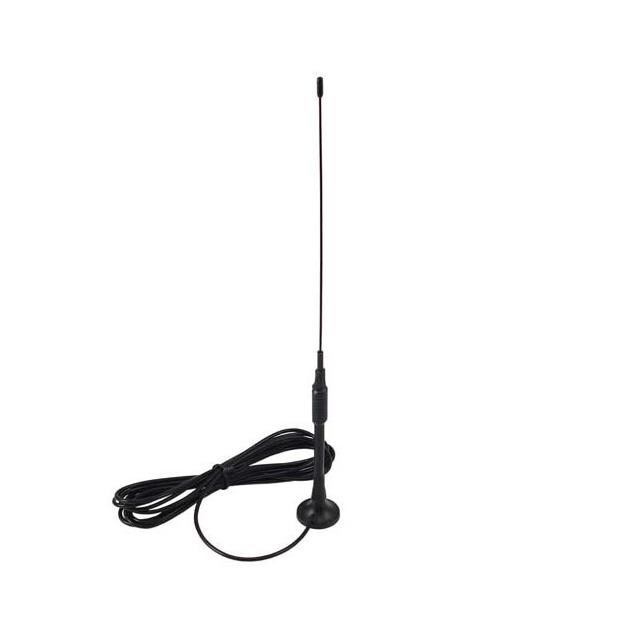

RE1903U-SM
ActivePasternack
ANTOMNI 800-2100MHZ 3DBI
RE1903U-SM
ActivePasternack
ANTOMNI 800-2100MHZ 3DBI
Description
General part information
RE1903U-SM
900MHz, 1.8GHz, 1.9GHz, 2.1GHz CSD, EDGE, GPRS, GSM, ISM, LoRa, LPWAN, LTE-M, M2M, NB-IoT, PCS, WLAN Whip, Straight RF Antenna 3dBi, 3dBi, 3dBi, 3dBi SMA Male Magnetic
Technical Specifications
Parameters and characteristics for this part
| Specification | RE1903U-SM |
|---|---|
| Antenna Type | Straight, Whip |
| Applications | WLAN, LoRa, PCS, CSD, ISM, EDGE, M2M, GPRS, LTE-M, LPWAN, GSM, NB-IoT |
| Features | Cable, 1.2192m |
| Frequency (Center/Band) | 900MHz, 2.1GHz, 1.9GHz, 1.8GHz |
| Frequency (Center/Band) - 1 | 900 MHz |
| Frequency (Center/Band) - 2 | 1.8 GHz |
| Frequency (Center/Band) - 3 | 1.9 GHz |
| Frequency (Center/Band) - 4 | 2.1 GHz |
| Frequency Group | Wide Band |
| Gain | 3 dBi |
| Height (Max) | 8.39 in |
| Mounting Type | Magnetic |
| Number of Bands | 4 |
| RF Family/Standard | WiFi, Cellular |
| Termination Type | SMA Male |
