RI415
ObsoleteTE Connectivity AMP Connectors
FIXED IND 300UH 15A 8 MOHM TH
RI415
ObsoleteTE Connectivity AMP Connectors
FIXED IND 300UH 15A 8 MOHM TH
Description
General part information
RI415

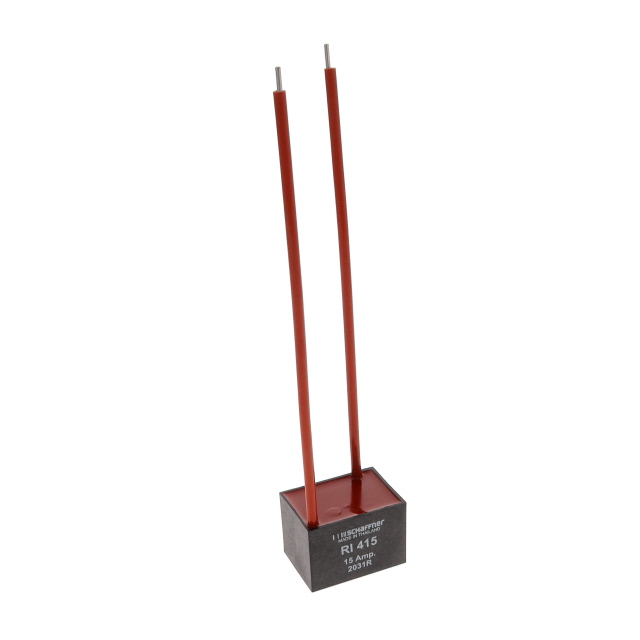

300 µH Unshielded Inductor 15 A 8mOhm Radial, Vertical
Technical Specifications
Parameters and characteristics for this part
| Specification | RI415 |
|---|---|
| Current Rating | 15 A |
| DC Resistance (DCR) | 8 mOhm |
| Height - Seated (Max) | 1.339 in |
| Inductance | 300 µH |
| Inductance Frequency - Test | 1 kHz |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 110 °C |
| Operating Temperature (Min) | -25 °C |
| Package / Case | Radial, Vertical |
| Shielding | Unshielded |
| Size / Dimension Length | 1.929 in |
| Size / Dimension Width | 1.378 in |
