228226-1
ActiveTE Connectivity AMP Connectors

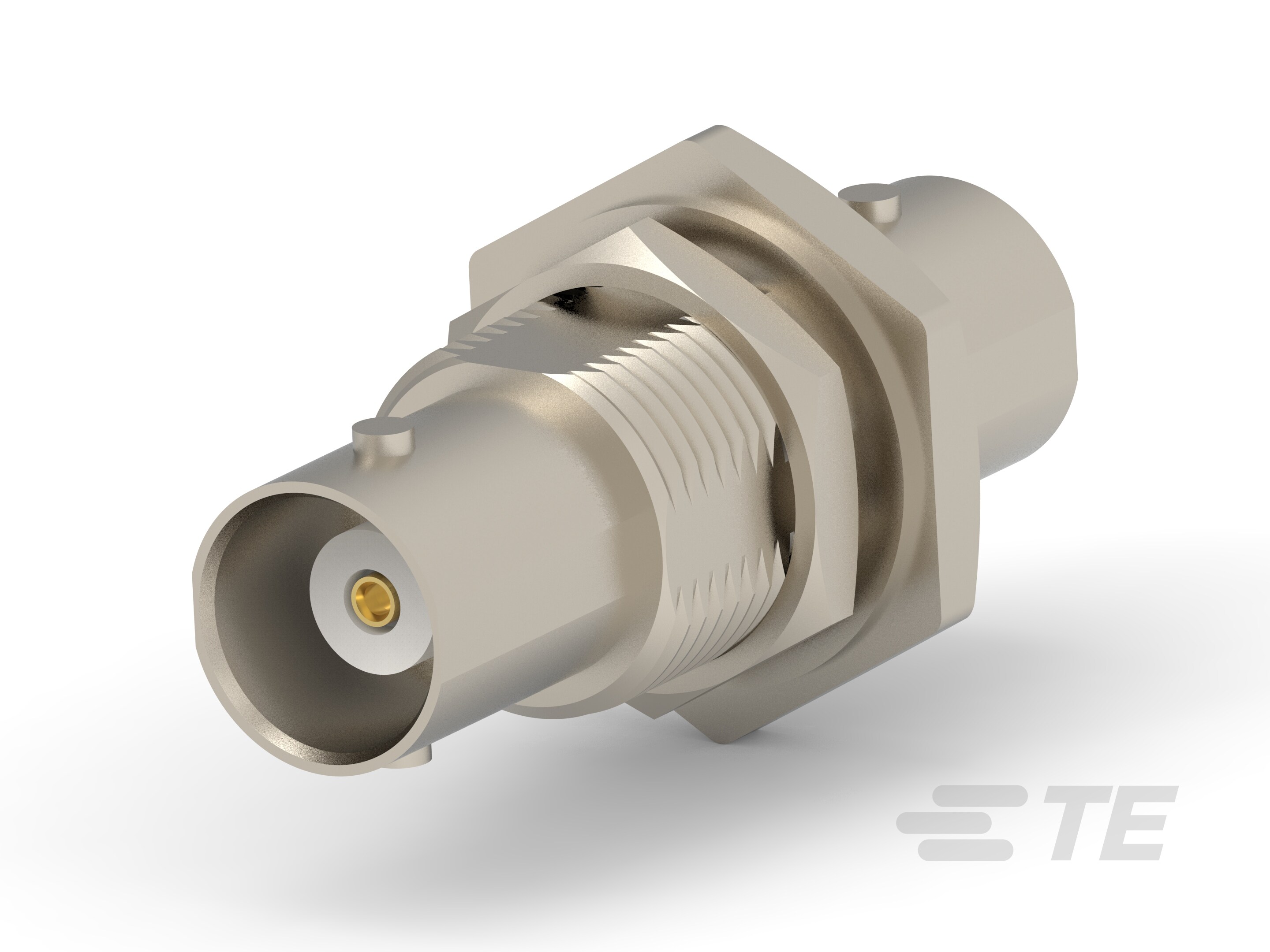

CONN BNC ADAPTER 0HZ TO 4GHZ 50OHM ST PANEL MOUNT RCP/RCP GOLD PACKAGE
228226-1
ActiveTE Connectivity AMP Connectors
CONN BNC ADAPTER 0HZ TO 4GHZ 50OHM ST PANEL MOUNT RCP/RCP GOLD PACKAGE
Description
General part information
228226-1
In-Series Adapter, Straight, BNC Side A, Jack Side A, BNC Side B, Jack Side B, 1 Position
Technical Specifications
Parameters and characteristics for this part
| Specification | 228226-1 |
|---|---|
| Adapter Series | BNC to BNC |
| Adapter Type | Jack to Jack |
| Center Contact Plating | Gold |
| Center Gender | Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | BNC Jack, Female Socket |
| Convert To (Adapter End) Gender | Female Socket |
| Convert To (Adapter End) Type | BNC Jack |
| Fastening Type | Bayonet Lock |
| Frequency - Max | 4 GHz |
| Impedance | 50 Ohm |
| Mounting Feature | Bulkhead |
| Mounting Type | Panel Mount |
| Style | Straight |
