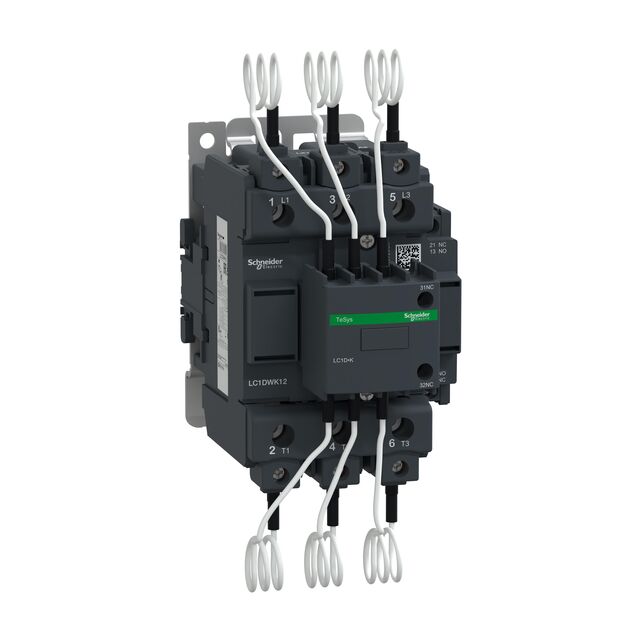

LC1DWK12M7
ActiveSCHNEIDER ELECTRIC
CONTACTOR, DIN RAIL, 690 V, DPST-NC, SPST-NO, 3 POLE
LC1DWK12M7
ActiveSCHNEIDER ELECTRIC
CONTACTOR, DIN RAIL, 690 V, DPST-NC, SPST-NO, 3 POLE
Description
General part information
LC1DWK12M7
CONTACTOR, DIN RAIL, 690 V, DPST-NC, SPST-NO, 3 POLE
Technical Specifications
Parameters and characteristics for this part
| Specification | LC1DWK12M7 |
|---|---|
| Coil Voltage | 220 V |
| Contact Form | A, PST-NO, Form, 3 |
| Features | Auxiliary Contacts |
| Mounting Type | Chassis Mount, DIN Rail |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -5 °C |
| Pin Count | 3 pins |
| Switching Voltage AC (Max) | 690 VAC |
| Termination Style | Screw Terminal |
