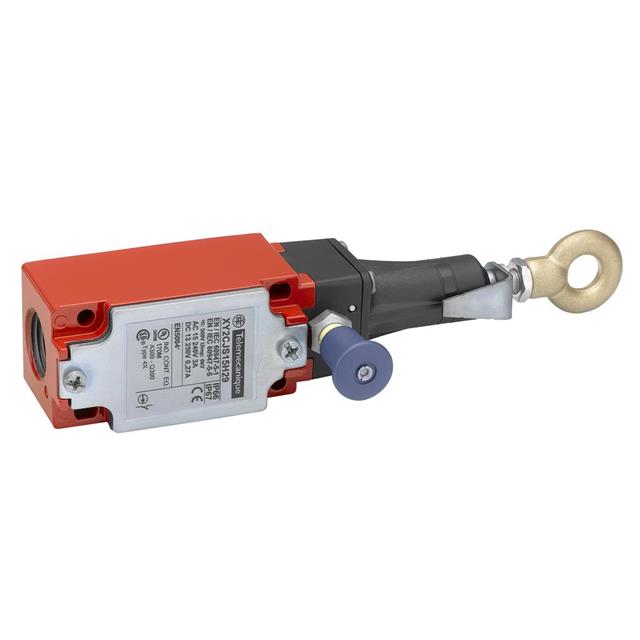

XY2CJS15
ActiveSCHNEIDER ELECTRIC
GRABWIRE SWITCH, EMERGENCY PUSHBUTTON, M20, 20 M, SPST-NO, SPST-NC, 240 V, 3 A, 250 V, 270 MA
XY2CJS15
ActiveSCHNEIDER ELECTRIC
GRABWIRE SWITCH, EMERGENCY PUSHBUTTON, M20, 20 M, SPST-NO, SPST-NC, 240 V, 3 A, 250 V, 270 MA
Description
General part information
XY2CJS15
GRABWIRE SWITCH, EMERGENCY PUSHBUTTON, M20, 20 M, SPST-NO, SPST-NC, 240 V, 3 A, 250 V, 270 MA
Technical Specifications
Parameters and characteristics for this part
| Specification | XY2CJS15 |
|---|---|
| Circuit | DPST-NO/NC |
| Current Rating | 3 A, 270 mA |
| Features | Push Button Emergency Stop Switch |
| Ingress Protection Description | Dust Tight, Waterproof, Water Resistant |
| Ingress Protection IP Rating | IP67, IP66 |
| Maximum Cable Length | 20 m |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Switch Function | On-Off, Off-On |
| Voltage Rating - AC | 240 V |
| Voltage Rating - DC | 250 VDC |
| Weight | 1 lbs |
