696434-1
ActiveTE Connectivity AMP Connectors

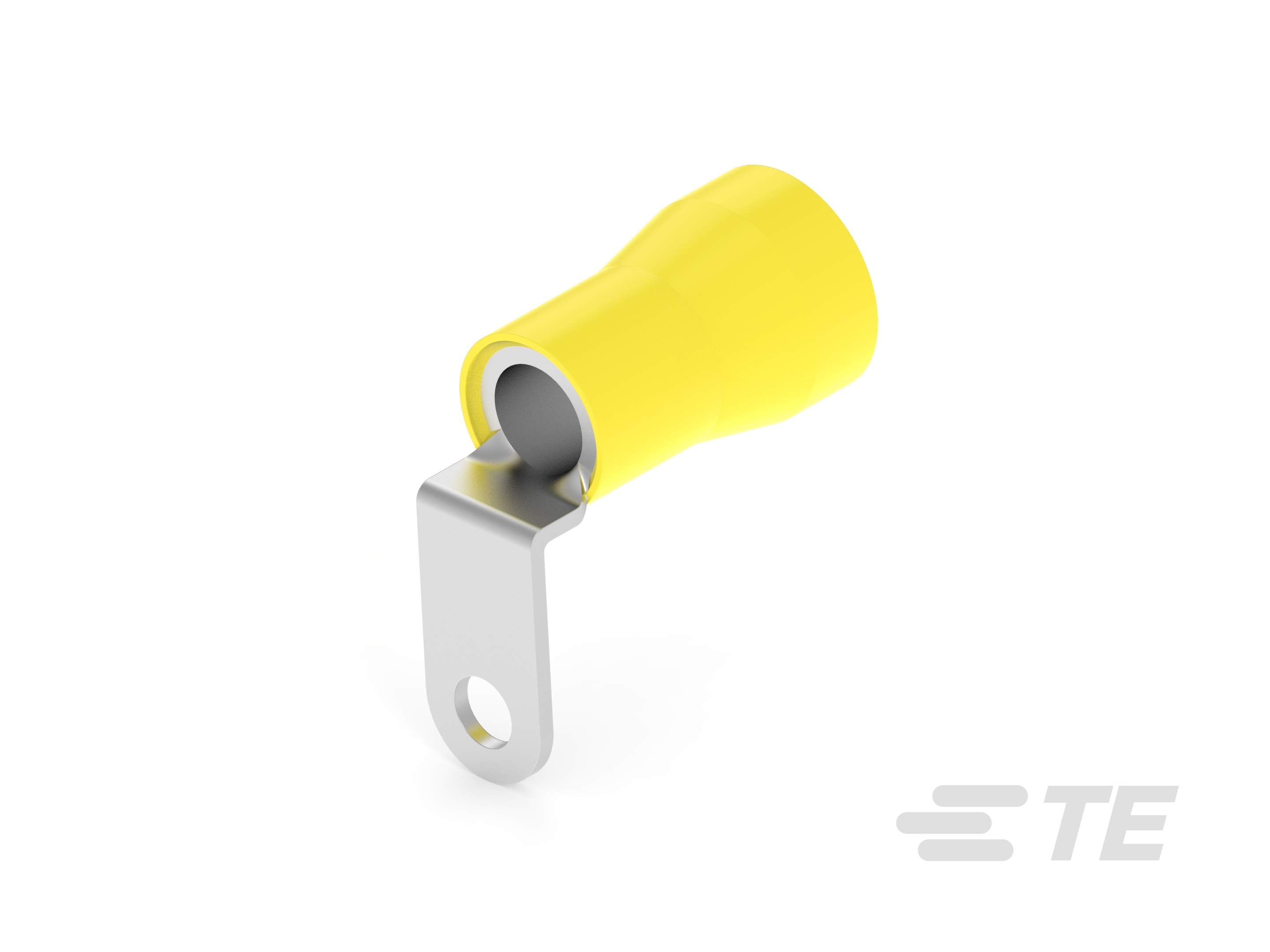

TERM, RING, PLASTI-GRIP, 4, #10, 90 BEND
696434-1
ActiveTE Connectivity AMP Connectors
TERM, RING, PLASTI-GRIP, 4, #10, 90 BEND
Description
General part information
696434-1
Closed Ring Tongue Terminal, 4 AWG, #10 Stud, 5 mm [.197 in] Stud Diameter, Closed Barrel, Right Angle, Tin Plating, Partially Insulated, PLASTI-GRIP
Technical Specifications
Parameters and characteristics for this part
| Specification | 696434-1 |
|---|---|
| Color | Yellow |
| Contact Finish | Tin |
| Contact Material | Copper |
| Insulation | Insulated |
| Mounting Type | Right Angle, Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | D-Shaped |
| Termination | Crimp |
| Thickness | 0.048 in |
| Width - Outer Edges | 0.391 in |
| Wire Gauge | 4 AWG |
