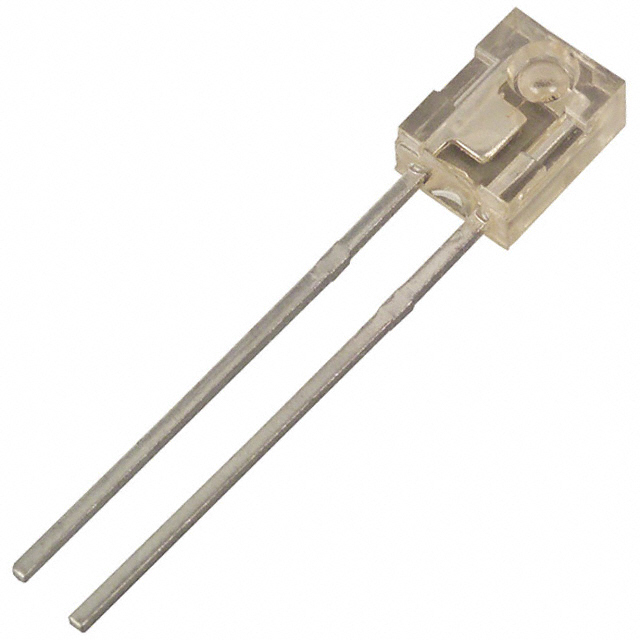

OP145A
ObsoleteTT Electronics/BI
EMITTER IR 935NM 50MA RADIAL
OP145A
ObsoleteTT Electronics/BI
EMITTER IR 935NM 50MA RADIAL
Description
General part information
OP145A
Infrared (IR) Emitter 935nm 1.6V 50mA 0.4mW/cm² @ 20mA 40° Radial
Technical Specifications
Parameters and characteristics for this part
| Specification | OP145A |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 100 °C |
| Operating Temperature (Min) | -40 °C |
| Orientation | Side View |
| Package / Case | Radial |
| Radiant Intensity (Ie) Min | 0.4 mW/cm² |
| Type | Infrared (IR) |
| Viewing Angle | 40 ° |
| Voltage - Forward (Vf) (Typ) | 1.6 V |
| Wavelength | 935 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
