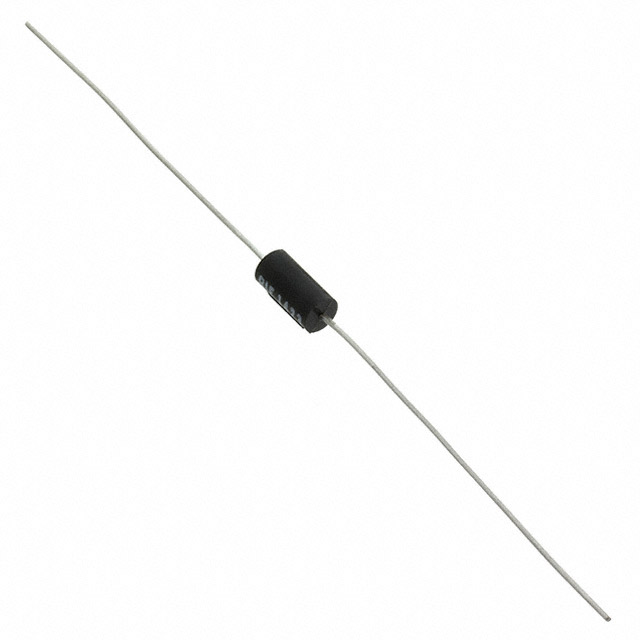

SM15-2K5X
ActiveBourns Inc.
RES 2.5K OHM 0.01% 0.175W AXIAL
SM15-2K5X
ActiveBourns Inc.
RES 2.5K OHM 0.01% 0.175W AXIAL
Description
General part information
SM15-2K5X
2.5 kOhms ±0.01% 0.175W Through Hole Resistor Axial Flame Proof, Moisture Resistant, Non-Inductive, Safety Wirewound
Technical Specifications
Parameters and characteristics for this part
| Specification | SM15-2K5X |
|---|---|
| Composition | Wirewound |
| Features | Non-Inductive, Moisture Resistant, Safety, Flame Proof |
| Number of Terminations | 2 |
| Operating Temperature (Max) | 145 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | Axial |
| Power (Watts) | 0.175 W |
| Resistance | 2.5 kOhm |
| Size / Dimension Diameter | 0.185 in |
| Size / Dimension Length | 0.374 in |
| Temperature Coefficient | 10 ppm/°C |
| Tolerance | 0.01 % |
