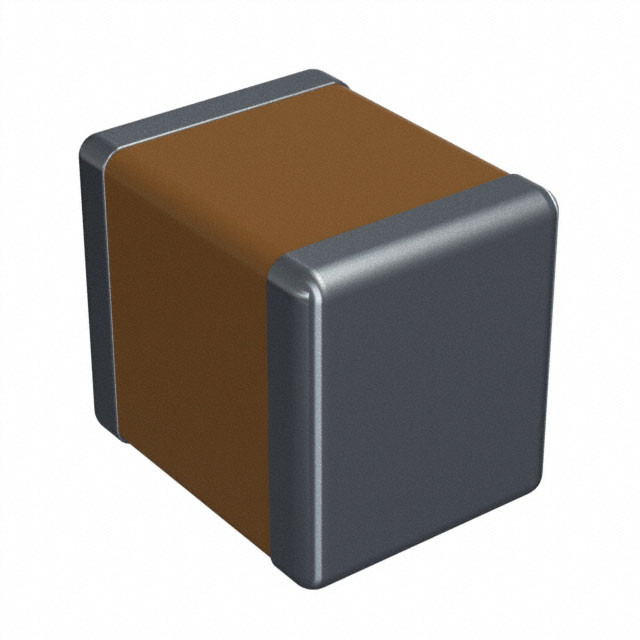

KAM32LR71H475KL
ActiveKYOCERA AVX
CAP CER 4.7UF 50V X7R 1210
KAM32LR71H475KL
ActiveKYOCERA AVX
CAP CER 4.7UF 50V X7R 1210
Description
General part information
KAM32LR71H475KL
4.7 µF ±10% 50V Ceramic Capacitor X7R 1210 (3225 Metric)
Technical Specifications
Parameters and characteristics for this part
| Specification | KAM32LR71H475KL |
|---|---|
| Applications | Automotive |
| Capacitance | 4.7 µF |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Package / Case | 1210 (3225 Metric) |
| Ratings | AEC-Q200 |
| Size / Dimension Length | 0.126 in |
| Size / Dimension Width | 0.098 in |
| Temperature Coefficient | X7R |
| Thickness (Max) | 0.11 in |
| Tolerance | 10 % |
| Voltage - Rated | 50 V |
