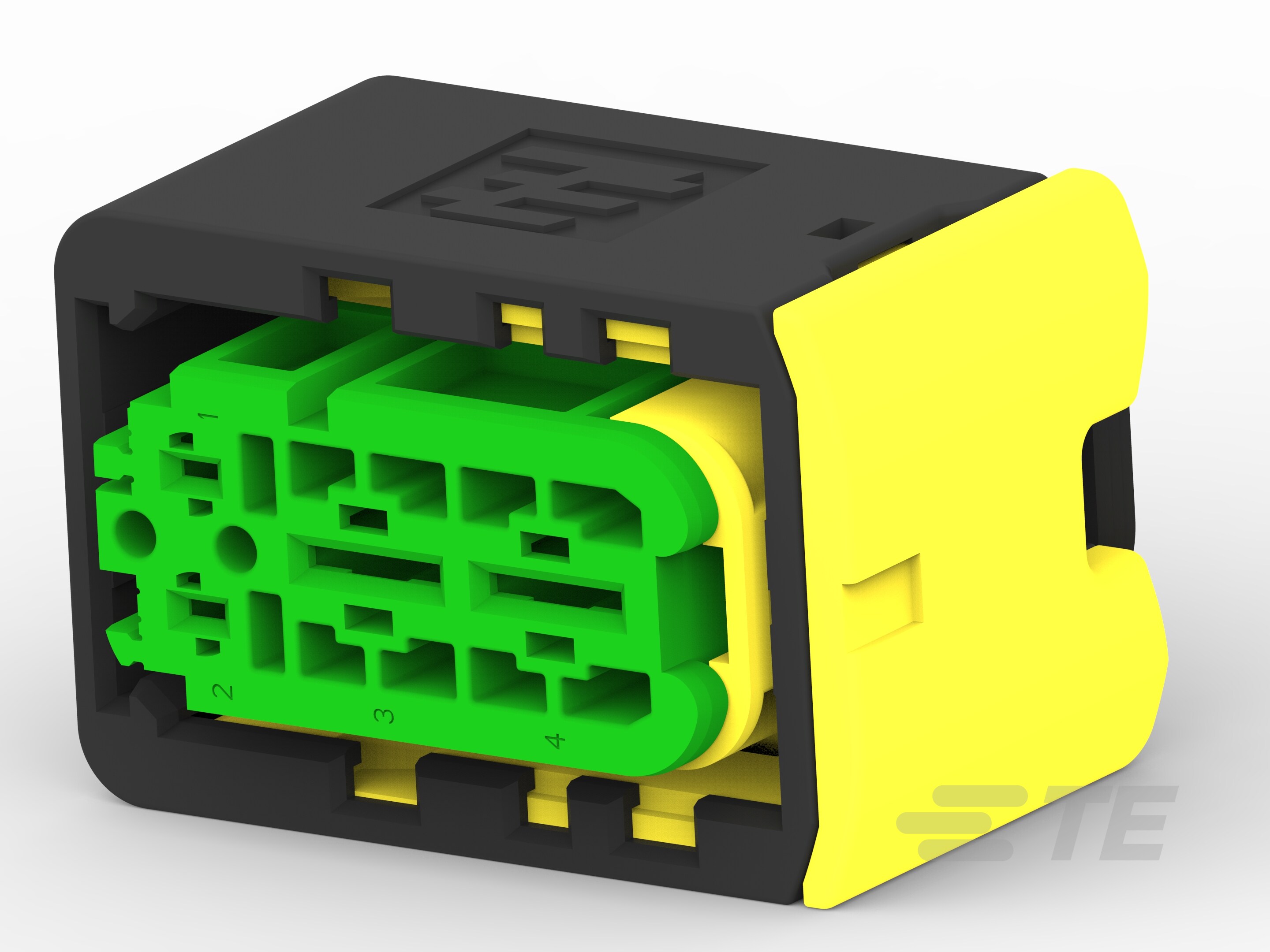

Specification	3-2208157-1

Color	Green
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Slide-On
Features	IP67, IP69K, IP67/IP69K
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	2
Operating Temperature (Max)	140 °C
Operating Temperature (Min)	-40 °C

Heavy Duty Sealed Connector Series Series

...

Part	Insulation Material	Number of Positions	Number of Rows	Color	Mounting Type	Contact Type	Fastening Type	Connector Type	Contact Termination	Row Spacing	Operating Temperature (Min)	Operating Temperature (Max)	Features	Pitch	Note	For Use With/Related Products	Accessory Type
TE Connectivity AMP Connectors 4-2383519-1	Glass Filled Polybutylene Terephthalate (PBT)	8	2	Blue	Free Hanging (In-Line)	Tab	Push-Pull	Plug	Crimp	0.236 in	-40 °C	140 °C
TE Connectivity AMP Connectors 1-1564546-1	Glass Filled Polybutylene Terephthalate (PBT)	2	1	Black	Panel Mount	Tab	Slide-On	Plug	Crimp		-40 °C	140 °C	Mounting Flange Sealed	0.354 in
TE Connectivity AMP Connectors 2-1564544-1	Glass Filled Polybutylene Terephthalate (PBT)	2	1	Gray	Panel Mount	Tab	Slide-On	Plug	Crimp		-40 °C	140 °C	Sealed	0.354 in	Contacts Not Included
TE Connectivity AMP Connectors 1564562-5																Heavy Duty Sealed Connector Series	Slide Lock
TE Connectivity AMP Connectors 1-1564522-1	Glass Filled Polybutylene Terephthalate (PBT)	8	2	Black	Free Hanging (In-Line)	Tab	Slide-On	Plug	Crimp	0.236 in	-40 °C	140 °C	Sealed	0.236 in	Contacts Not Included
TE Connectivity AMP Connectors 3-1563759-1	Glass Filled Polybutylene Terephthalate (PBT)	18	2	Green	Free Hanging (In-Line)	Female Socket	Slide-On	Receptacle	Crimp	0.236 in	-40 °C	140 °C	Sealed	0.157 in	Contacts Not Included
TE Connectivity AMP Connectors 2-1670901-1	Glass Filled Polybutylene Terephthalate (PBT)	12	2	Gray	Free Hanging (In-Line)	Female Socket	Slide-On	Receptacle	Crimp	0.236 in	-40 °C	140 °C	Sealed	0.236 in
TE Connectivity AMP Connectors 2-1703639-1	Glass Filled Polybutylene Terephthalate (PBT)	12	2	Gray	Free Hanging (In-Line)	Female Socket	Slide-On	Receptacle	Crimp	0.236 in	-40 °C	140 °C	Sealed	0.157 in
TE Connectivity AMP Connectors 1-2382274-1	Glass Filled Polybutylene Terephthalate (PBT)	2	1	Black	Free Hanging (In-Line)	Tab	Slide-On	Plug	Crimp		-40 °C	140 °C	Sealed	0.157 in
TE Connectivity AMP Connectors 3-1564518-1	Glass Filled Polybutylene Terephthalate (PBT)	10	2	Green	Panel Mount	Tab	Slide-On	Plug	Crimp	0.236 in	-40 °C	140 °C	Mounting Flange Sealed
