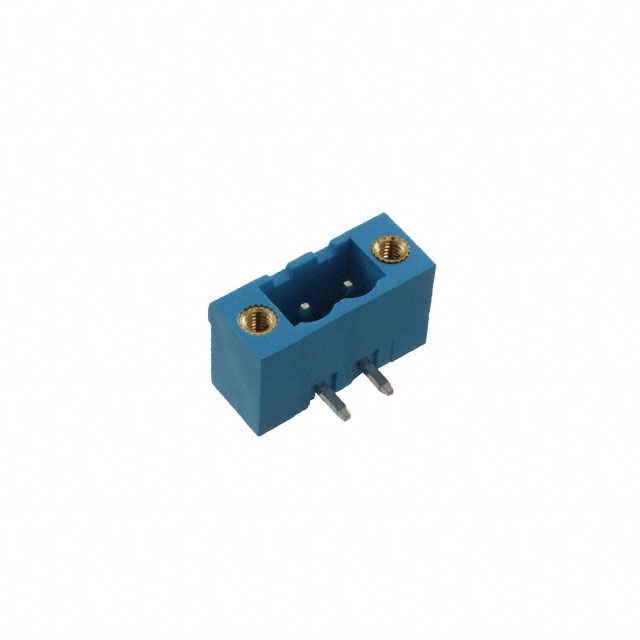

Specification	TBP01R1W-508-02BE

Color	Blue
Contact Material	Copper Alloy
Contact Mating Finish	Tin
Contact Tail Length	0.157 in
Current - IEC	20 A
Current - UL	16 A
Features	Mating Flange
Header Orientation	Right Angle
Header Orientation Angle	90 °
Housing Material	Nylon 6/6, Polyamide, PA66
Insulation Height	0.335 in
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Levels	1
Number of Positions	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	5.08 mm
Positions Per Level	2
Termination Style	Solder
Type	Shrouded (4 Side), Male Pins, Header
Voltage - IEC	320 V
Voltage - UL	300 V

TBP01R1 Series

Part	Header Orientation Angle	Header Orientation	Type	Current - UL	Color	Mounting Type	Pitch	Number of Positions	Termination Style	Voltage - IEC	Positions Per Level	Operating Temperature (Min)	Operating Temperature (Max)	Current - IEC	Voltage - UL	Contact Mating Finish	Number of Levels	Housing Material	Insulation Height	Contact Material	Contact Tail Length	Material Flammability Rating	Features
Same Sky (Formerly CUI Devices) TBP01R1-508-24BE	90 °	Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	24 pos	Solder	320 V	24	-40 °C	105 °C	20 A	300 V	Tin	1
Same Sky (Formerly CUI Devices) TBP01R1-508-08BE	90 °	Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	8	Solder	320 V	8	-40 °C	105 °C	20 A	300 V	Tin	1
Same Sky (Formerly CUI Devices) TBP01R1-508-02BE	90 °	Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	2	Solder	320 V	2	-40 °C	105 °C	20 A	300 V	Tin	1	Nylon 6/6 PA66 Polyamide	0.335 in	Copper Alloy	0.157 in	UL94 V-0
Same Sky (Formerly CUI Devices) TBP01R1W-508-12BE	90 °	Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	12	Solder	320 V	12	-40 °C	105 °C	20 A	300 V	Tin	1						Mating Flange
Same Sky (Formerly CUI Devices) TBP01R1W-508-08BE	90 °	Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	8	Solder	320 V	8	-40 °C	105 °C	20 A	300 V	Tin	1						Mating Flange
Same Sky (Formerly CUI Devices) TBP01R1-508-10BE	90 °	Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	10	Solder	320 V	10	-40 °C	105 °C	20 A	300 V	Tin	1
Same Sky (Formerly CUI Devices) TBP01R1-508-14BE	90 °	Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	14	Solder	320 V	14	-40 °C	105 °C	20 A	300 V	Tin	1	Nylon 6/6 PA66 Polyamide	0.335 in	Copper Alloy	0.157 in	UL94 V-0
Same Sky (Formerly CUI Devices) TBP01R1-508-11BE	90 °	Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	11	Solder	320 V	11	-40 °C	105 °C	20 A	300 V	Tin	1	Nylon 6/6 PA66 Polyamide	0.335 in	Copper Alloy	0.157 in	UL94 V-0
Same Sky (Formerly CUI Devices) TBP01R1-508-10BE	90 °	Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	10	Solder	320 V	10	-40 °C	105 °C	20 A	300 V	Tin	1	Nylon 6/6 PA66 Polyamide	0.335 in	Copper Alloy	0.157 in	UL94 V-0
Same Sky (Formerly CUI Devices) TBP01R1W-508-10BE	90 °	Right Angle	Header Male Pins Shrouded (4 Side)	16 A	Blue	Through Hole	5.08 mm	10	Solder	320 V	10	-40 °C	105 °C	20 A	300 V	Tin	1						Mating Flange
