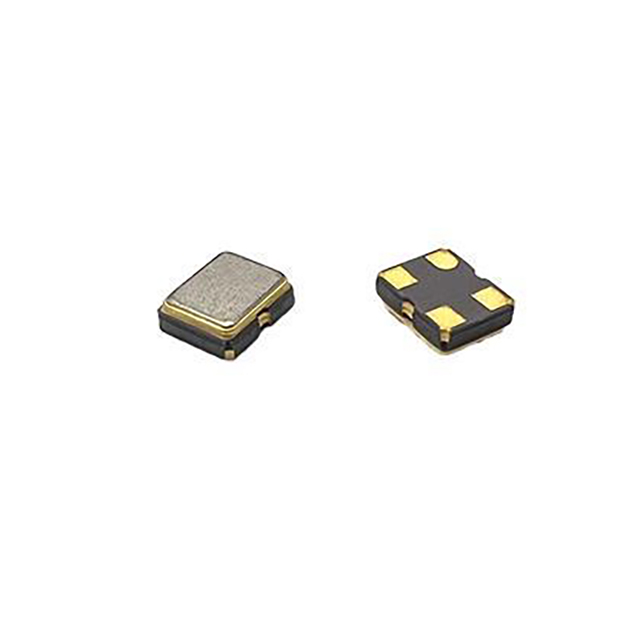

SM2220KC-32.768K
ActivePletronics, Inc
PLETRONICS SM22K SERIES IS A QUA
SM2220KC-32.768K
ActivePletronics, Inc
PLETRONICS SM22K SERIES IS A QUA
Description
General part information
SM2220KC-32.768K
32.768 kHz XO (Standard) CMOS Oscillator 1.6V ~ 3.63V Enable/Disable 4-SMD, No Lead
Technical Specifications
Parameters and characteristics for this part
| Specification | SM2220KC-32.768K |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) | 5 µA |
| Current - Supply (Max) | 35 µA |
| Frequency | 0.032768 MHz |
| Frequency Stability | 20 ppm |
| Function | Enable, Disable |
| Height - Seated (Max) | 0.03 in |
| Mounting Type | Surface Mount |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -20 °C |
| Output | CMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension Length | 0.081 in |
| Size / Dimension Width | 0.065 in |
| Type | XO (Standard) |
| Voltage - Supply (Maximum) | 3.63 V |
| Voltage - Supply (Minimum) | 1.6 V |
