2485540-4
ActiveTE Connectivity AMP Connectors

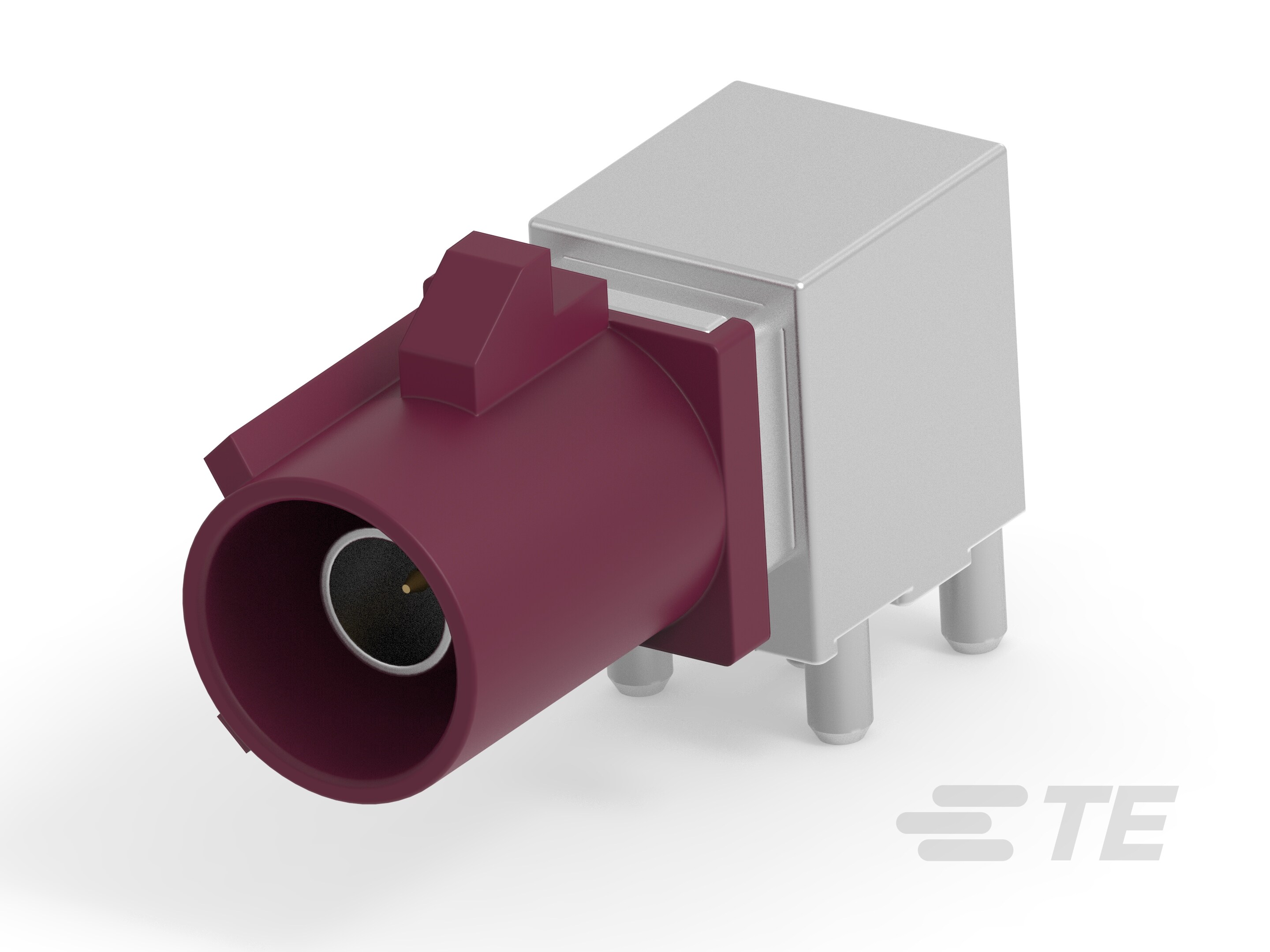

FAKRA M W HOUSING,CODE D,RA,PCB,STD,6G
2485540-4
ActiveTE Connectivity AMP Connectors
FAKRA M W HOUSING,CODE D,RA,PCB,STD,6G
Description
General part information
2485540-4
FAKRA Connector, Plug, 50 ohm, Locking, 0 – 6 GHz, Cable-to-Board, 1 Position, Printed Circuit Board, -40 – 105 °C [-40 – 221 °F], Solder, Right Angle
Technical Specifications
Parameters and characteristics for this part
| Specification | 2485540-4 |
|---|---|
| Center Contact Material | Brass |
| Connector Style | Fakra, SMB |
| Connector Type | Male Pin, Plug |
| Contact Termination | Solder |
| Fastening Type | Locking Ramp |
| Features | Code D |
| Frequency - Max | 6000 MHz |
| Housing Color | Bordeaux, Violet |
| Impedance | 50 Ohm |
| Mounting Type | Through Hole, Right Angle |
| Number of Ports | 1 |
| Shield Termination | Solder |
