LCCA30130-FT4
ActivePasternack
BNC FEMALE TO BNC FEMALE BULKHEA
LCCA30130-FT4
ActivePasternack
BNC FEMALE TO BNC FEMALE BULKHEA
Description
General part information
LCCA30130-FT4

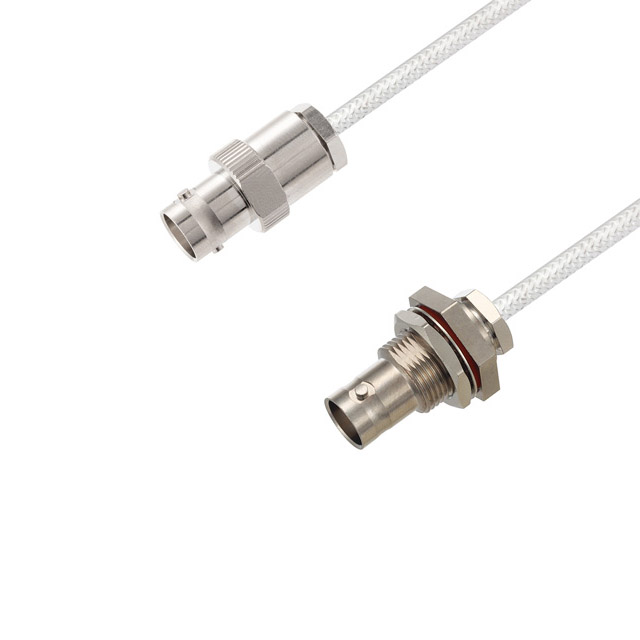

Cable Assembly Coaxial BNC to BNC LC085TB 48.0" (1.2m) 4.0'
Technical Specifications
Parameters and characteristics for this part
| Specification | LCCA30130-FT4 |
|---|---|
| 1st Connector | BNC Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | BNC Jack |
| 2nd Connector Mounting Feature | Bulkhead - Front Side Nut |
| 2nd Connector Mounting Type | Panel Mount |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type | LC085TB |
| Connector Impedance | 50 Ohms |
| Frequency - Max | 20 Gbps |
| Length | 48 in |
| Operating Temperature (Max) | 125 °C |
| Operating Temperature (Min) | -55 °C |
| Overall Impedance | 50 Ohms |
| Style | BNC |
