XUYFALNEP100080
ActiveSCHNEIDER ELECTRIC

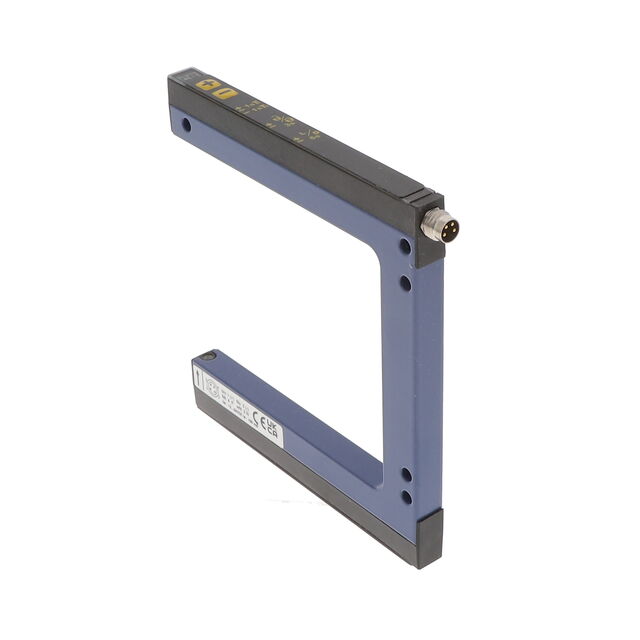

PHOTOELECTRIC FORK SENSOR
XUYFALNEP100080
ActiveSCHNEIDER ELECTRIC
PHOTOELECTRIC FORK SENSOR
Description
General part information
XUYFALNEP100080
Through-Beam Optical Sensor 3.150" (80mm) NPN-NC/NO
Technical Specifications
Parameters and characteristics for this part
| Specification | XUYFALNEP100080 |
|---|---|
| Connection Method | M8, Connector |
| Ingress Protection | IP65 |
| Light Source | Infrared |
| Operating Temperature (Max) | 60 °C |
| Operating Temperature (Min) | -20 °C |
| Output Configuration | NO, NPN-NC |
| Sensing Distance | 3.15 " |
| Sensing Method | Through-Beam |
| Voltage - Supply (Maximum) | 24 VAC |
| Voltage - Supply (Minimum) | 12 VDC |
