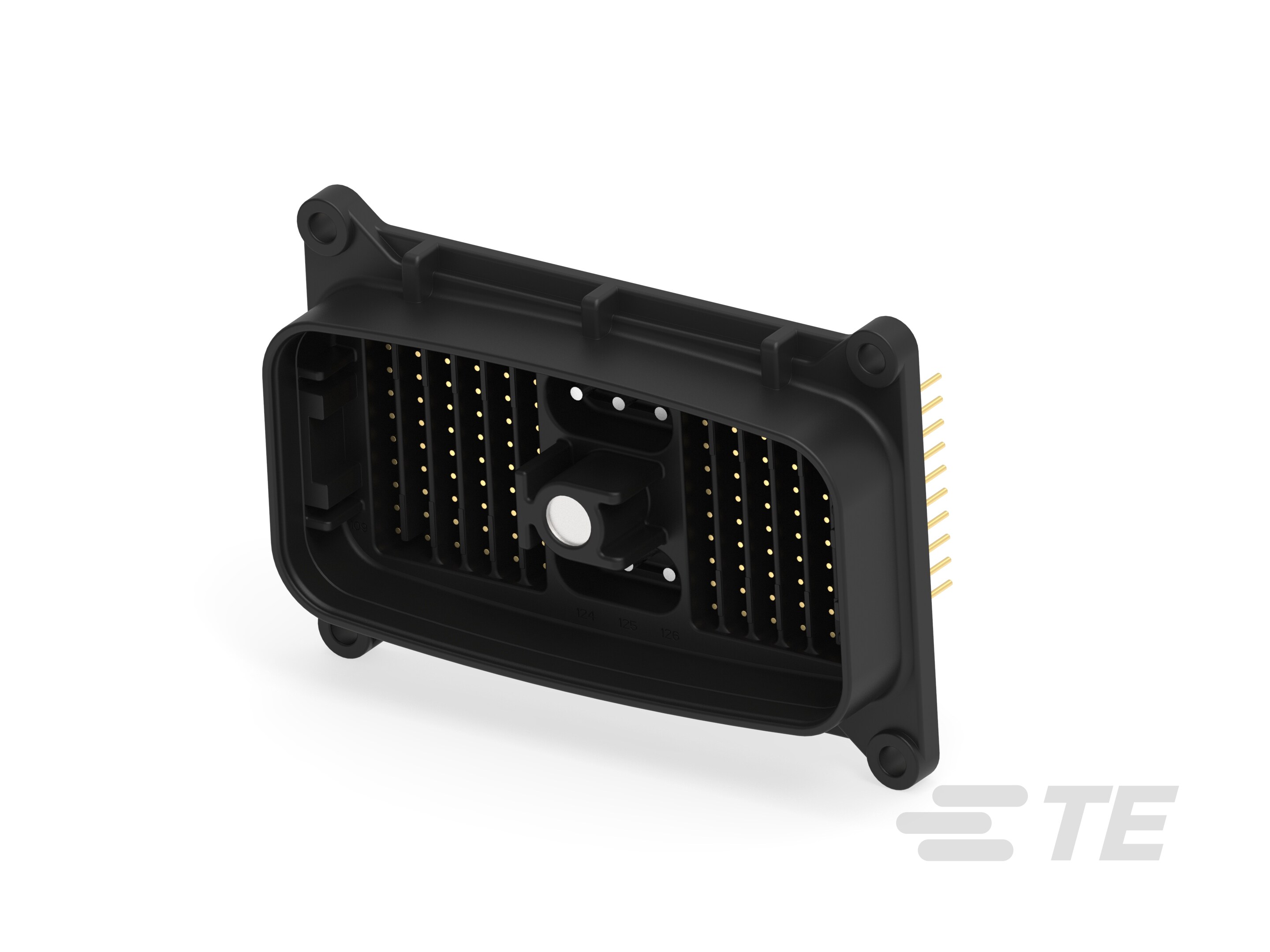

Specification	DRCP25-126PAA-G003

Connector Type	Header
Contact Finish - Mating	Tin, Gold
Contact Finish - Post	Gold, Tin
Contact Material	Copper Alloy
Contact Shape	Circular
Contact Type	Male Pin
Current Rating	7.5 A
Fastening Type	Push-Pull
Features	Mounting Flange
Insulation Color	Black
Insulation Height	1.256 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mounting Type	Through Hole
Number of Positions	126
Number of Positions Loaded	All
Number of Rows	10
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Row Spacing - Mating	0.157 in
Shrouding	Shrouded - 4 Wall
Style	Cable/Wire, Board
Termination	Solder
Voltage Rating	250 V
Voltage Rating (Type)	DC
