Description
General part information

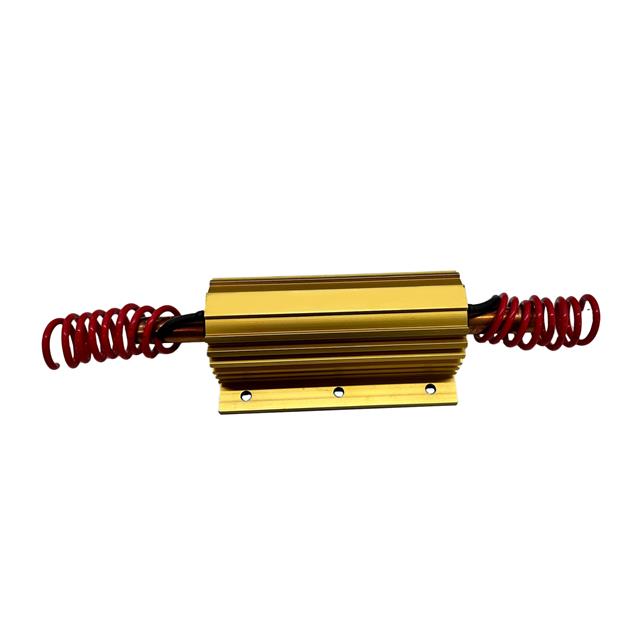

HSW600 680R J
680 Ohms ±5% 600W Chassis Mount Resistor
Technical Specifications
Parameters and characteristics for this part
| Specification | HSW600 680R J |
|---|---|
| Coating | Aluminum |
| Features | Pulse Withstanding |
| Height - Seated (Max) | 1.772 in |
| Housing Type | Aluminum |
| Lead Style | Wire Leads |
| Mounting Feature | Flanges |
| Package / Case | Box, Axial |
| Power (Watts) | 600 W |
| Resistance | 680 Ohm |
| Size / Dimension Length | 4.488 in |
| Size / Dimension Width | 2.835 in |
| Temperature Coefficient | 25 ppm/°C |
| Tolerance | 5 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
