TD8P8C
ActivePasternack
PLUG RJ45 (8X8) FLT CBL 100PK
TD8P8C
ActivePasternack
PLUG RJ45 (8X8) FLT CBL 100PK
Description
General part information
TD8P8C

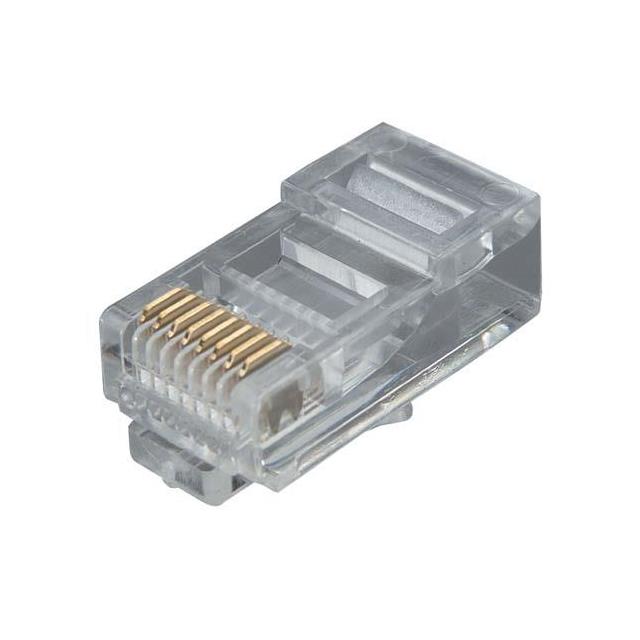

Plug Modular Connector 8p8c (RJ45, Ethernet) Position Unshielded IDC
Technical Specifications
Parameters and characteristics for this part
| Specification | TD8P8C |
|---|---|
| Cable Type | Solid or Stranded Wires, Round Cable, Flat Cable |
| Color | Clear |
| Connector Type | Plug, Ethernet, RJ45 |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Contact Material | Copper Alloy |
| Current Rating | 2 A |
| Housing Material | PC, Polycarbonate |
| Length | 0.91 in |
| Number of Contacts | 8 |
| Number of Positions | 8 |
| Shielding | Unshielded |
| Termination | IDC |
| Voltage Rating | 250 V |
| Wire Gauge (AWG) (Max) | 28 AWG |
| Wire Gauge (AWG) (Min) | 24 AWG |
