ANT-2.4-FPC-LH100M4
ActiveTE Connectivity AMP Connectors

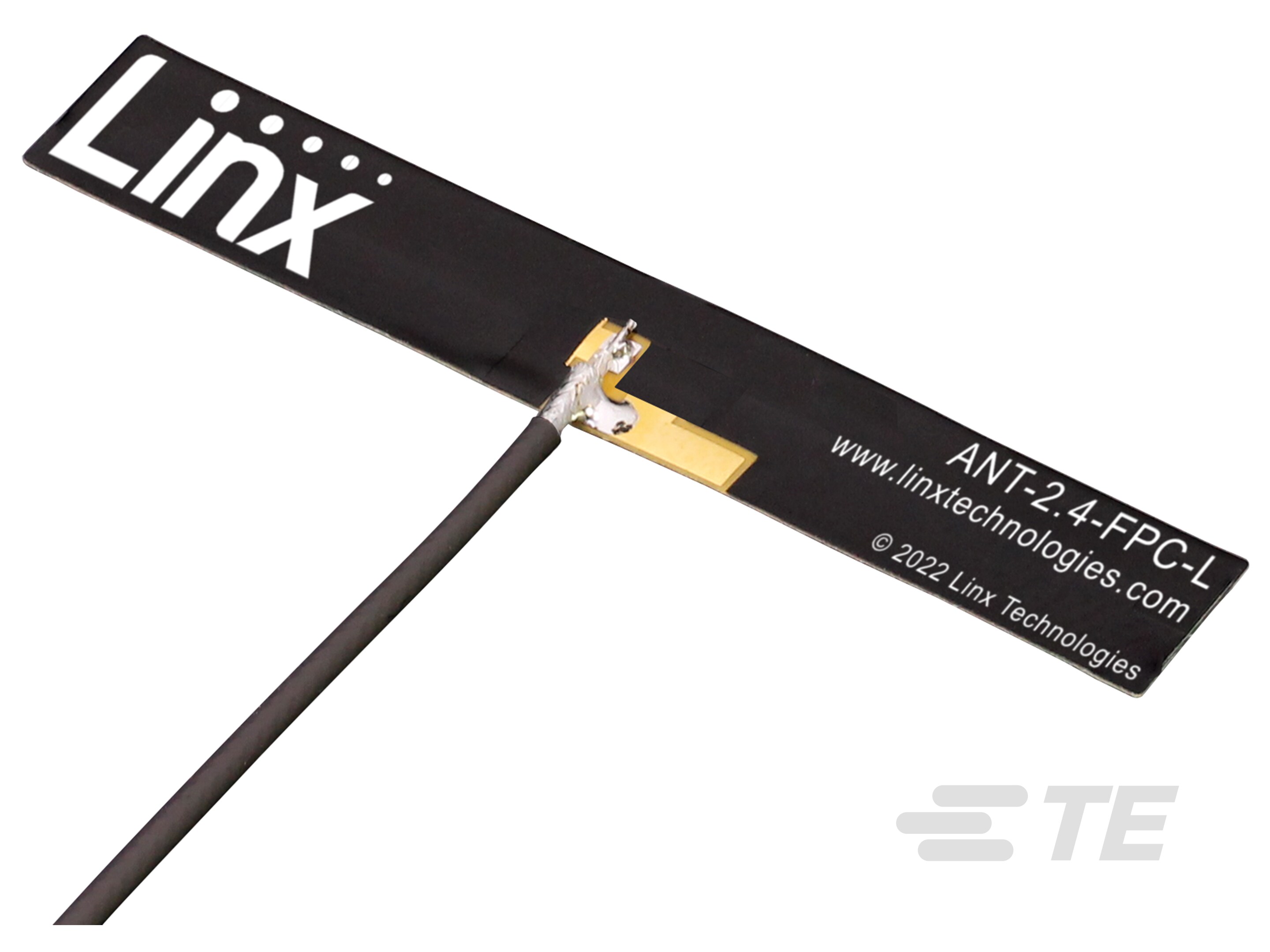

ANTENNA 2.4 FPC LH 45X7 100 MHF4
ANT-2.4-FPC-LH100M4
ActiveTE Connectivity AMP Connectors
ANTENNA 2.4 FPC LH 45X7 100 MHF4
Description
General part information
ANT-2.4-FPC-LH100M4
Flexible PCB (FPC) Antenna, Single Band, Bluetooth / ISM / Zigbee, Internal/Embedded Mount, Adhesive Mount, MHF4, Omnidirectional, Single Port
Technical Specifications
Parameters and characteristics for this part
| Specification | ANT-2.4-FPC-LH100M4 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | Zigbee™, Bluetooth, ISM, Wi-Fi |
| Features | Cable, 100mm |
| Frequency (Center/Band) | 2.45 GHz |
| Frequency Group | UHF |
| Frequency Group Maximum (UHF) | 3 GHz |
| Frequency Group Minimum (UHF) | 2 GHz |
| Frequency Range (Max) | 2.5 GHz |
| Frequency Range (Min) | 2.4 GHz |
| Gain | 6.1 dBi |
| Height (Max) | 0.004 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| Power - Max | 2 VA |
| RF Family/Standard | 802.15.4, Bluetooth, General ISM, WiFi |
| Termination | MHF4 |
| VSWR | 1.4 |
