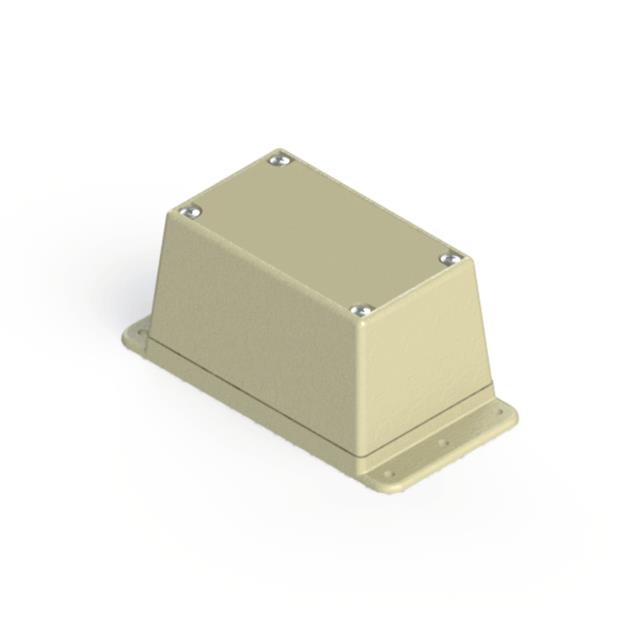

Specification	WM013RI,AL

Area (L x W)	8.22 in²
Color	Almond
Container Type	Box
Design	Cover Included
Features	Mounting Flange, Wall Mount, PCB Supports, Front Access
Height	2.1 in
Material	ABS, Plastic
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension Length	3.62 in
Size / Dimension Width	2.27 in
Thickness	0.1 in
Weight	0.159 lb

WM013 Series

Part	Weight	Area (L x W)	Material	Color	Size / Dimension Width	Size / Dimension Length	Material Flammability Rating	Design	Ratings	Features	Container Type	Height	Thickness
Serpac WM013,GY	0.159 lb	8.1 in²	ABS Plastic	Gray	2.25 in	3.6 in	UL94 HB	Cover Included	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Box	2.1 in	0.1 in
Serpac WM013RI,BK	0.159 lb	8.22 in²	ABS Plastic	Black	2.27 in	3.62 in	UL94 HB	Cover Included	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Box	2.1 in	0.1 in
Serpac WM013R,AL	0.159 lb	8.22 in²	ABS Plastic	Almond	2.27 in	3.62 in	UL94 HB	Cover Included	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Box	2.1 in	0.1 in
Serpac WM013I,GY	0.159 lb	8.1 in²	ABS Plastic	Gray	2.25 in	3.6 in	UL94 HB	Cover Included	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Box	2.1 in	0.1 in
Serpac WM013R,BK	0.159 lb	8.22 in²	ABS Plastic	Black	2.27 in	3.62 in	UL94 HB	Cover Included	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Box	2.1 in	0.1 in
Serpac WM013R,GY	0.159 lb	8.22 in²	ABS Plastic	Gray	2.27 in	3.62 in	UL94 HB	Cover Included	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Box	2.1 in	0.1 in
Serpac WM013I,AL	0.159 lb	8.1 in²	ABS Plastic	Almond	2.25 in	3.6 in	UL94 HB	Cover Included	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Box	2.1 in	0.1 in
Serpac WM013,BK	0.159 lb	8.1 in²	ABS Plastic	Black	2.25 in	3.6 in	UL94 HB	Cover Included	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Box	2.1 in	0.1 in
Serpac WM013RI,GY	0.159 lb	8.22 in²	ABS Plastic	Gray	2.27 in	3.62 in	UL94 HB	Cover Included	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount	Box	2.1 in	0.1 in
Serpac WM013,AL	0.159 lb	8.1 in²	ABS Plastic	Almond	2.25 in	3.6 in	UL94 HB	Cover Included	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	Box	2.1 in	0.1 in
