30016
Active3M Electronic Specialty

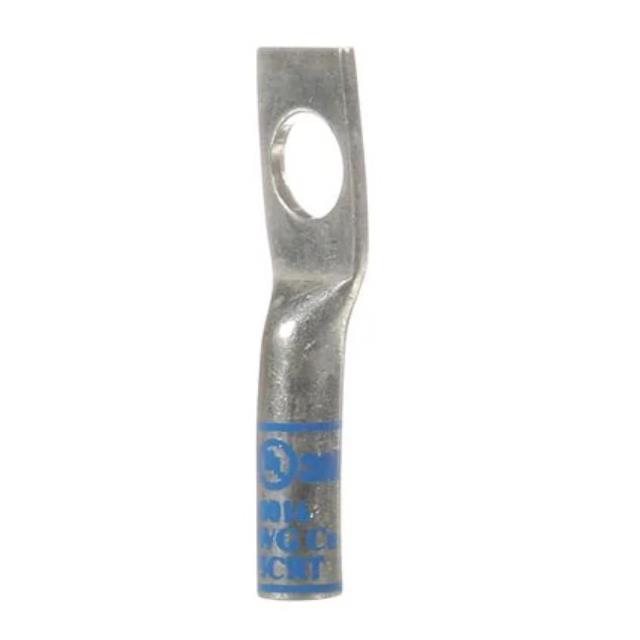

3M(TM) SCOTCHLOK(TM) COPPER ONE HOLE LUG 30016, UP TO 35 KV, 6 AWG, BLUE
30016
Active3M Electronic Specialty
3M(TM) SCOTCHLOK(TM) COPPER ONE HOLE LUG 30016, UP TO 35 KV, 6 AWG, BLUE
Description
General part information
30016
Terminal Connector Rectangular Standard 6 AWG 5/16 Stud
Technical Specifications
Parameters and characteristics for this part
| Specification | 30016 |
|---|---|
| Color | Blue |
| Contact Finish | Electro-Tin |
| Contact Material | Copper |
| Diameter - Barrel ID | 0.196 in |
| Diameter - Barrel OD | 0.29 in |
| Insulation | Non-Insulated |
| Length - Overall | 1.78 in |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 0.3125 in |
| Stud/Tab Size | 16 Stud, 5 Stud |
| Stud/Tab Size (Type) | Stud |
| Terminal Style | Single Stud Hole |
| Terminal Type | Standard |
| Termination | Barrel, Crimb |
| Width - Outer Edges | 0.5 in |
| Wire Gauge | 6 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
