WPSD9S
ActiveD SUB CONNECTOR, 9 CONTACTS, RECEPTACLE, SOLDER CUP, DE, WPSD SERIES, METAL BODY
WPSD9S
ActiveD SUB CONNECTOR, 9 CONTACTS, RECEPTACLE, SOLDER CUP, DE, WPSD SERIES, METAL BODY
Description
General part information
WPSD9S

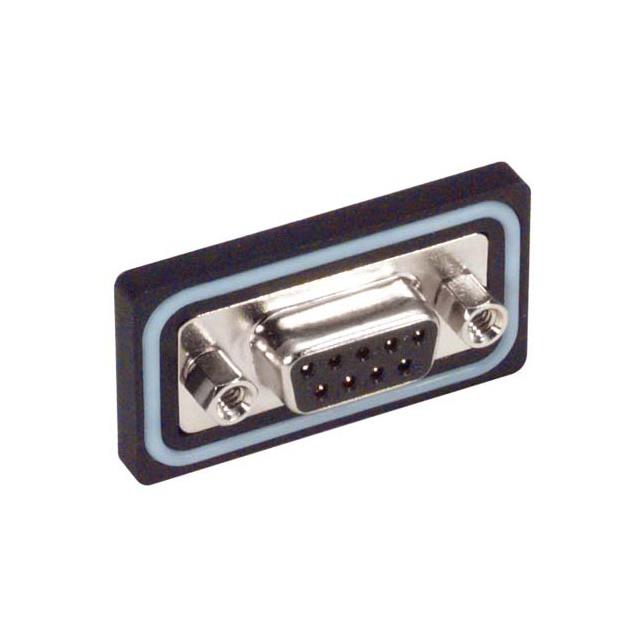

The WPSD9S is a DB9 Female Panel-mount Solder Cup D-sub Connector, WPSD series, with gold-plated brass contacts, nickel-plated steel shells and silicone insulating ring. It will accommodate wire ranges from 30 to 20AWG. Maximum recommended panel thickness is 0.078-inch (0.2cm). Harsh outdoor or indoor environments can destroy electronic equipment. Standard D-sub connector is not intended to withstand contaminants such as water and dust.
Technical Specifications
Parameters and characteristics for this part
| Specification | WPSD9S |
|---|---|
| Connector Layout | DE, E |
| Connector Style | D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Material | Brass |
| Contact Type | Signal |
| Flange Feature | Female Screwlock (4-40), Mating Side |
| Ingress Protection Description | Waterproof, Dust Tight |
| Ingress Protection IP Rating | IP67 |
| Mounting Type | Panel Mount |
| Number of Positions | 9 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Shell Size | 1 |
| Termination | Solder Cup |
| Wire Gauge (AWG) (Max) | 30 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
