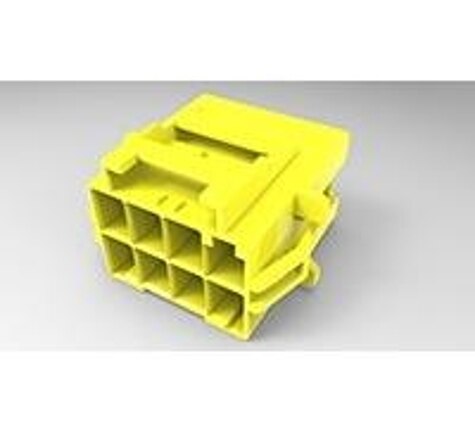

4-1971775-4
ActiveTE Connectivity AMP Connectors
HEADERS & WIRE HOUSINGS PTL 2X4 CAP PANEL MT STD TEMP KEY D YEL
4-1971775-4
ActiveTE Connectivity AMP Connectors
HEADERS & WIRE HOUSINGS PTL 2X4 CAP PANEL MT STD TEMP KEY D YEL
Description
General part information
4-1971775-4
8 Position, Cap, Housing, Crimp, Wire-to-Wire, UL 94V-0, 6 mm [.236 in] Centerline, 2 Row, 600 VAC, Wire & Cable, Power, Power Triple Lock
Technical Specifications
Parameters and characteristics for this part
| Specification | 4-1971775-4 |
|---|---|
| Color | Yellow |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Tab |
| Fastening Type | Latch Holder, Latch Lock |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Panel Mount, Snap-In |
| Number of Positions | 8 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -55 °C |
| Pitch | 0.236 in |
| Row Spacing | 0.319 in |
