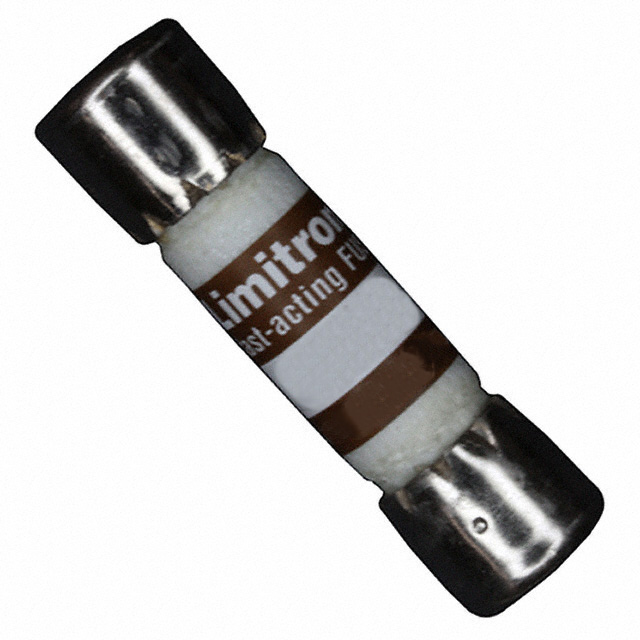

KTK-7
ActiveEaton - Electronics Division
FUSE, INDUSTRIAL / POWER, KTK SERIES, 7 A, 600 VAC, 10.3MM X 38.1MM, 13/32" X 1-1/2"
KTK-7
ActiveEaton - Electronics Division
FUSE, INDUSTRIAL / POWER, KTK SERIES, 7 A, 600 VAC, 10.3MM X 38.1MM, 13/32" X 1-1/2"
Description
General part information
KTK-7
7A 600 VAC Fuse Cartridge Requires Holder
Technical Specifications
Parameters and characteristics for this part
| Specification | KTK-7 |
|---|---|
| Applications | Electrical, Industrial |
| Approval Agency | UL, CSA |
| Breaking Capacity | 100 kA |
| Current Rating | 7 A |
| Fuse Type | Cartridge |
| Mounting Type | Requires Holder |
| Package / Case | 5AG, 10mm x 38mm (Midget) |
| Package Features | Midget |
| Package Length | 10 mm |
| Package Name | 5AG Midget, 5AG |
| Package Width | 38 mm |
| Response Time | Fast Blow |
| Size / Dimension Diameter | 0.406 in |
| Size / Dimension Length | 1.5 in |
| Voltage Rating - AC | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
