2-292376-0
ActiveTE Connectivity AMP Connectors

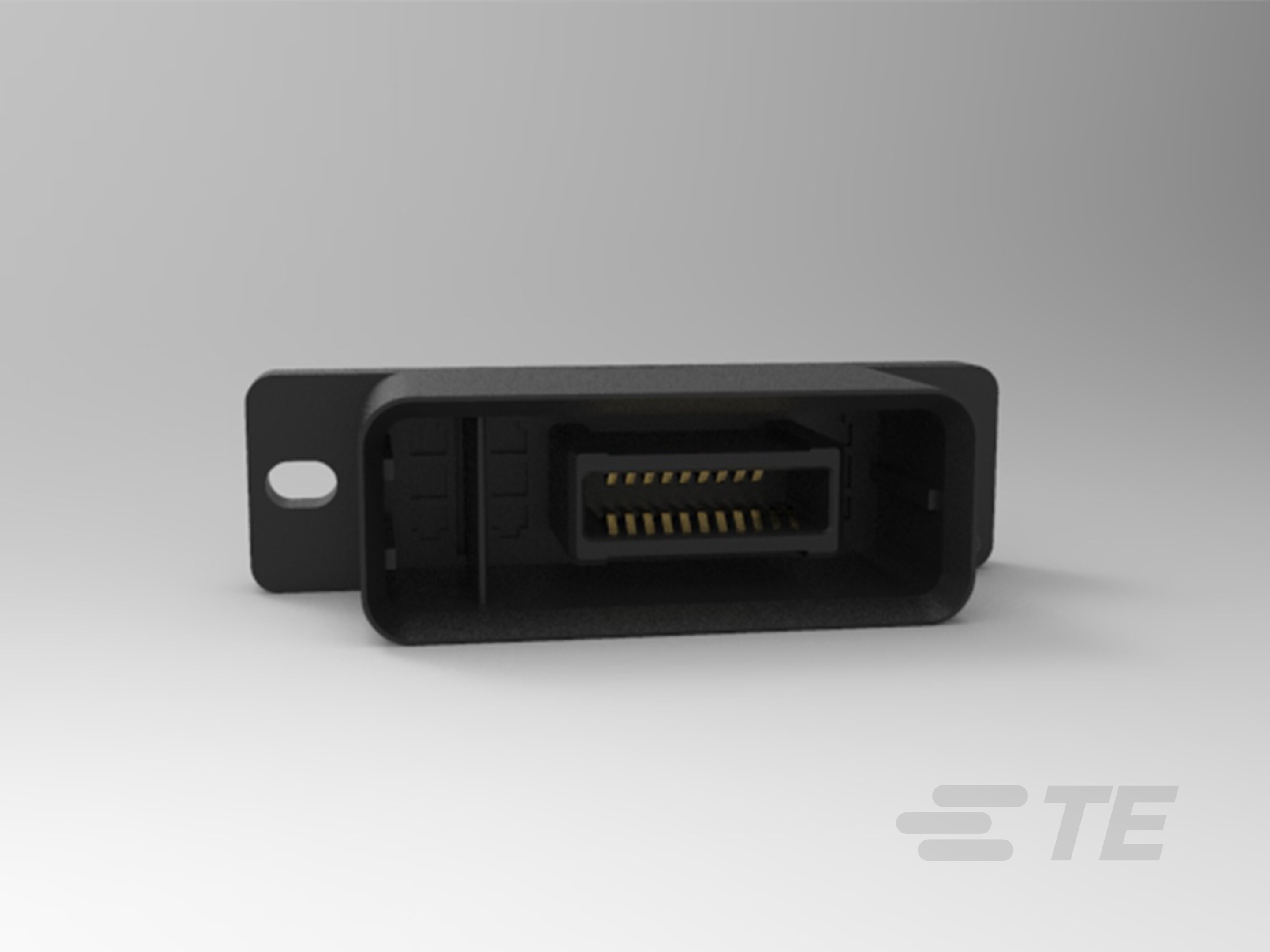

PLUG ASSY FOR 1.5MM PITCH MINI CT HYBRID
2-292376-0
ActiveTE Connectivity AMP Connectors
PLUG ASSY FOR 1.5MM PITCH MINI CT HYBRID
Description
General part information
2-292376-0
26 Position, Plug, Connector Assembly, Crimp/IDC, Wire-to-Wire, 1.5 mm [.059 in] Centerline, 2 Row, Wire & Cable, Power, Panel Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 2-292376-0 |
|---|---|
| Color | Black |
| Connector Style | Mini-Drawer |
| Connector Type | Plug |
| Contact Finish | Gold-Palladium, Gold |
| Mounting Type | Panel Mount |
| Number of Positions | 26 |
| Number of Positions Loaded | 20 |
| Power Contacts (Typical) | 6 |
| Signal Contacts (Typical) | 20 |
| Termination | Crimp |
