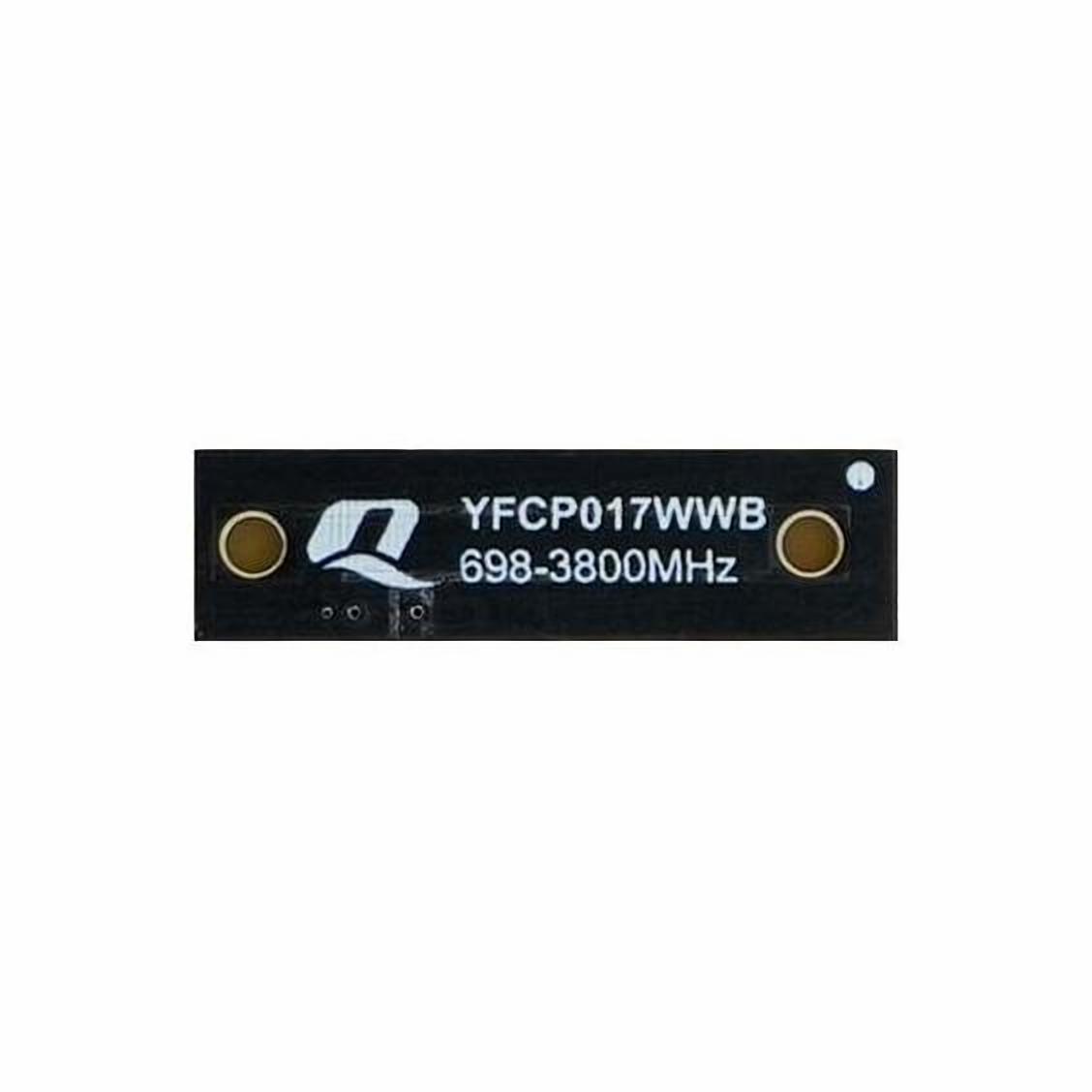

Specification	YFCP017WWB

Antenna Type	Chip
Applications	4G
Frequency (Center/Band)	2.2GHz, 829MHz, 3.55GHz
Frequency (Center/Band) - 1	829 MHz
Frequency (Center/Band) - 2	2.2 GHz
Frequency (Center/Band) - 3	3.55 GHz
Frequency Group	Wide Band
Frequency Range (Band 1) Maximum	960 MHz
Frequency Range (Band 1) Minimum	698 MHz
Frequency Range (Band 2) Maximum	2.69 GHz
Frequency Range (Band 2) Minimum	1.71 GHz
Frequency Range (Band 3) Maximum	3.8 GHz
Frequency Range (Band 3) Minimum	3.3 GHz
Gain	2.9 dBi
Height (Max)	0.118 in
Mounting Type	Surface Mount
Number of Bands	3
RF Family/Standard	Cellular
Termination	Solder
