6-1393375-7
ActiveTE Connectivity AMP Connectors

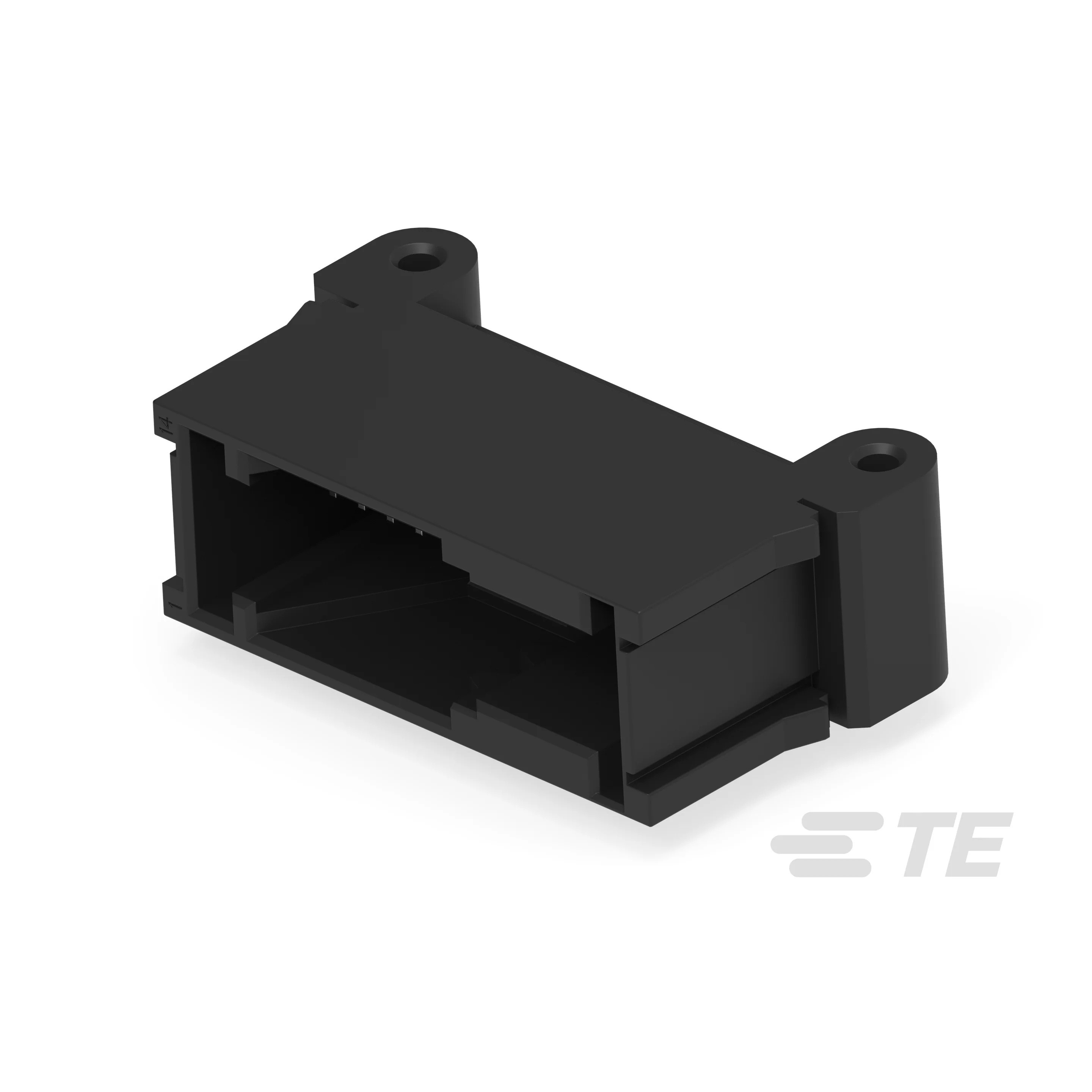

26POS MQS .63 HEADER THR 90DEG LEFT BLAK
6-1393375-7
ActiveTE Connectivity AMP Connectors
26POS MQS .63 HEADER THR 90DEG LEFT BLAK
Description
General part information
6-1393375-7
Horizontal, Wire-to-Board, 26 Position, 2 Rows, 2.54mm [.1in] Centerline, Tin (Sn), Printed Circuit Board, Signal, Black, Board Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 6-1393375-7 |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Tin |
| Contact Finish - Post | Tin |
| Contact Length - Mating | 0.264 in |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Current Rating | 7.5 A |
| Fastening Type | Push-Pull |
| Features | Mounting Flange |
| Insulation Color | Black |
| Insulation Height | 0.776 in |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 26 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -40 °C |
| Pitch - Mating | 0.1 in |
| Row Spacing - Mating | 0.1 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Cable/Wire, Board |
| Termination | Solder |
| Voltage Rating | 12 V |
