Specification	D2F-01F-D

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating	100 mA
Differential Travel (Linear)	0.005 in
Electrical Life (Cycles)	100000 Cycles
Ingress Protection	IP40
Mechanical Life (Cycles)	1000000 Cycles
Mounting Type	Chassis Mount
Operating Force	75 gf
Operating Position (Length)	0.217 in
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-40 °C
Overtravel (Linear)	0.01 in
Pretravel (Length)	0.02 in
Release Force	5.099 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - DC	30 V

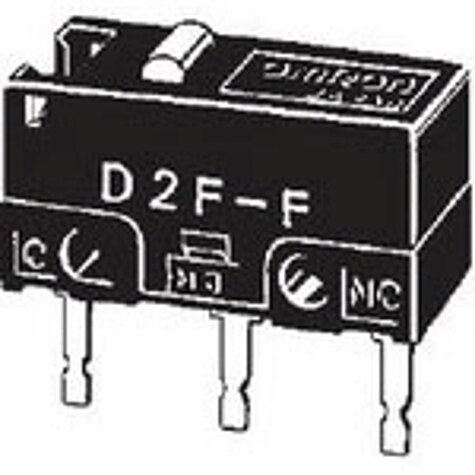

D2F Series

...

Part	Operating Force	Differential Travel (Linear)	Termination Style	Mounting Type	Overtravel (Linear)	Circuit	Switch Function	Current Rating	Operating Position (Length)	Electrical Life (Cycles)	Voltage Rating - DC	Release Force	Ingress Protection	Mechanical Life (Cycles)	Operating Temperature (Min)	Operating Temperature (Max)	Actuator Type	Pretravel (Length)	Voltage Rating - AC	Features
Omron Electronics Inc-EMC Div D2F-01-D3	150 gf	0.005 in	Solder Lug	Chassis Mount	0.01 in	SPDT	On-Mom	100 mA	0.217 in	100000 Cycles	30 V	20 gf	IP40	1000000 Cycles	-40 °C	85 °C	Round (Pin Plunger)	0.02 in
Omron Electronics Inc-EMC Div D2F-FL3-T	75 gf	0.018 in	PC Pin	Through Hole	0.02 in	SPDT	On-Mom	0.5 A 1 A	0.335 in	30000 Cycles	30 V	2.039 gf	IP40	1000000 Cycles	-40 °C	85 °C	Lever Simulated Roller		125 V
Omron Electronics Inc-EMC Div D2F-L-A1	80 gf	0.02 in	PC Pin	Right Angle Through Hole	0.022 in	SPDT	On-Mom	2 A 3 A	0.268 in	30000 Cycles	30 V	5.099 gf	IP40	1000000 Cycles	-40 °C	85 °C	Lever Straight		125 V	Actuator Mounted Left Side
Omron Electronics Inc-EMC Div D2F-L30-T	55 gf	0.02 in	PC Pin	Through Hole	0.02 in	SPDT	On-Mom	2 A 3 A	0.374 in	30000 Cycles	30 V	4 gf	IP40	1000000 Cycles	-40 °C	85 °C	Lever Simulated Roller		125 V
Omron Electronics Inc-EMC Div D2F-01F-D3	75 gf	0.005 in	Solder Lug	Chassis Mount	0.01 in	SPDT	On-Mom	100 mA	0.217 in	100000 Cycles	30 V	5.099 gf	IP40	1000000 Cycles	-40 °C	85 °C	Round (Pin Plunger)	0.02 in
Omron Electronics Inc-EMC Div D2F-T	150 gf	0.005 in	PC Pin	Through Hole	0.01 in	SPDT	On-Mom	2 A 3 A	0.217 in	30000 Cycles	30 V	20 gf	IP40	1000000 Cycles	-40 °C	85 °C	Round (Pin Plunger)	0.02 in	125 V
Omron Electronics Inc-EMC Div D2FL30D3	150 gf	0.02 in	Solder Lug	Chassis Mount	0.02 in	SPDT	On-Mom	2 A 3 A	0.374 in	30000 Cycles	30 V	4.079 gf	IP40	1000000 Cycles	-40 °C	85 °C	Lever Simulated Roller		125 V
Omron Electronics Inc-EMC Div D2F-01	150 gf	0.005 in	PC Pin	Through Hole	0.01 in	SPDT	On-Mom	100 mA	0.217 in	100000 Cycles	30 V	20 gf	IP40	1000000 Cycles	-40 °C	85 °C	Round (Pin Plunger)	0.02 in
Omron Electronics Inc-EMC Div D2F-L2-A1	80 gf	0.02 in	PC Pin	Right Angle Through Hole	0.022 in	SPDT	On-Mom	2 A 3 A	0.512 in	30000 Cycles	30 V	5.099 gf	IP40	1000000 Cycles	-40 °C	85 °C	Lever Roller		125 V	Actuator Mounted Left Side
Omron Electronics Inc-EMC Div D2F-FL3	75 gf	0.018 in	PC Pin	Through Hole	0.02 in	SPDT	On-Mom	0.5 A 1 A	0.335 in	30000 Cycles	30 V	2.039 gf	IP40	1000000 Cycles	-40 °C	85 °C	Lever Simulated Roller		125 V
