Description
General part information
SMPL20M0T0LB/AA

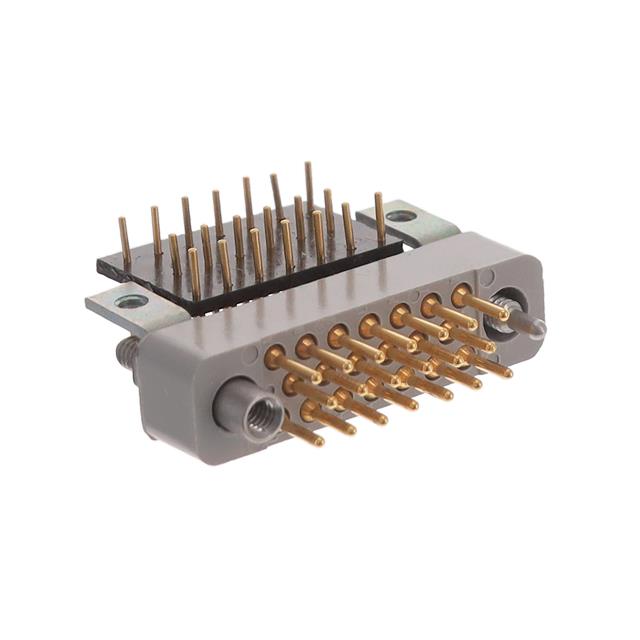

20 Connector Plug, Male Pins Through Hole, Right Angle Gray
Technical Specifications
Parameters and characteristics for this part
| Specification | SMPL20M0T0LB/AA |
|---|---|
| Color | Gray |
| Connector Type | Male Pins, Plug |
| Contact Finish | Gold |
| Contact Finish Thickness | 15 µin |
| Features | Mating Guide |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 3 |
| Operating Temperature (Max) | 135 °C |
| Operating Temperature (Min) | -55 °C |
| Termination | Solder |
| Voltage Rating | 250 V |
