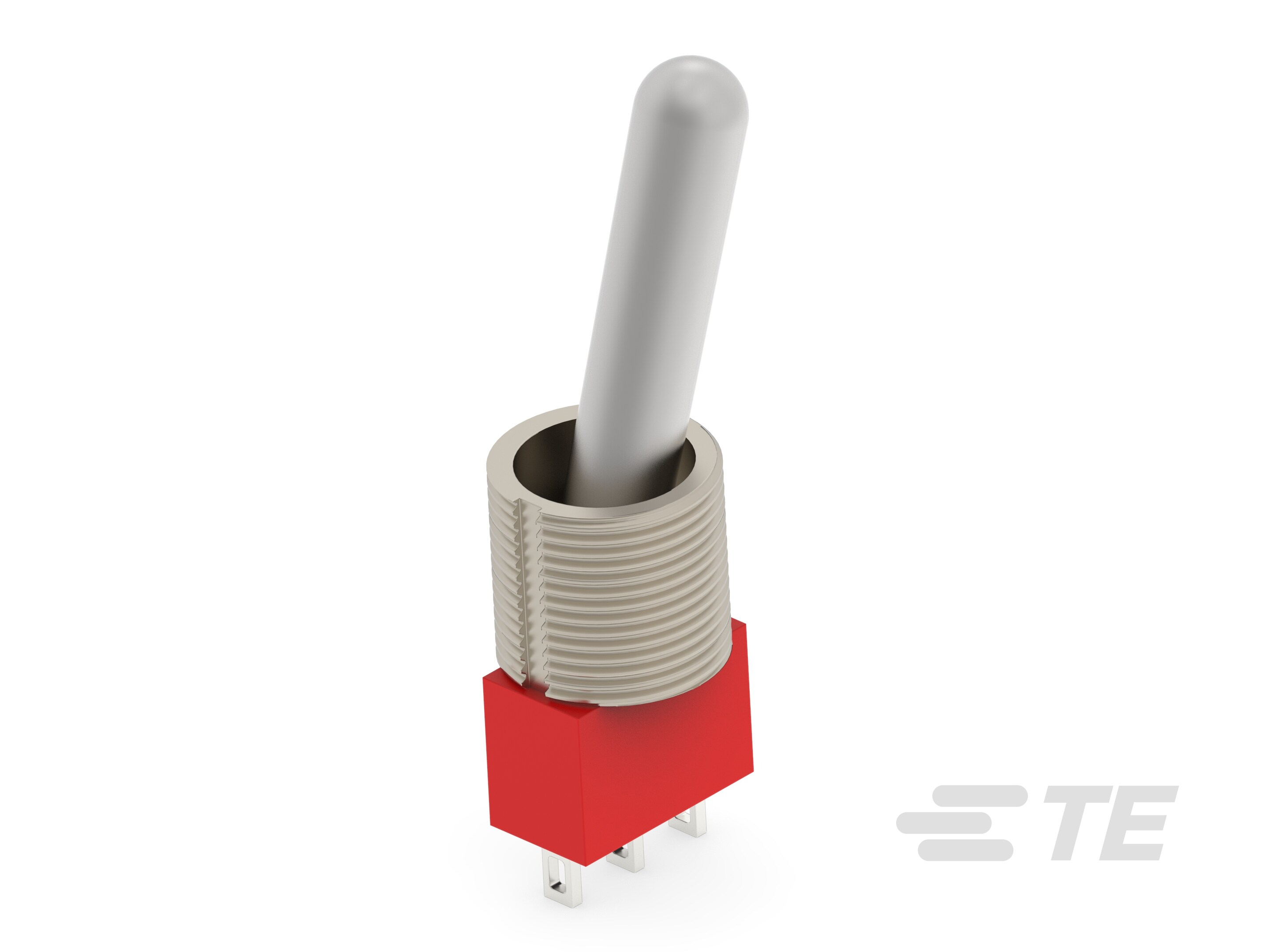

Specification	4-1825137-2

Actuator Length	17.45 mm
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	SPDT
Current Rating	5 A
Features	Epoxy Sealed Terminals
Illumination	Non-Illuminated
Mounting Type	Panel Mount
Operating Temperature (Max)	85 °C
Operating Temperature (Min)	-30 °C
Panel Cutout Diameter	12 mm
Panel Cutout Shape	Circular
Switch Function	Mom-Off-Mom
Termination Style	Solder Lug
Voltage Rating - AC	120 V
Voltage Rating - DC	28 V

ALCOSWITCH Gemini A Series Series

Part	Electrical Life (Cycles)	Operating Temperature (Max)	Operating Temperature (Min)	Switch Function	Actuator Type	Voltage Rating - AC	Circuit	Panel Cutout Shape	Panel Cutout Length	Panel Cutout Width	Color - Actuator/Cap	Actuator Marking	Current Rating	Termination Style	Voltage Rating - DC	Features	Mounting Type
TE Connectivity AMP Connectors 3-1571986-5	6000 Cycles	85 °C	-30 °C	On-On	Concave (Standard V)	120 V	SPDT	Rectangular	15.75 mm	12.7 mm	Red	No Marking	5 A	Solder Lug	28 V	Epoxy Sealed Terminals	Panel Mount Snap-In
TE Connectivity AMP Connectors 3-1571986-4	6000 Cycles	85 °C	-30 °C	On-On	Concave (Standard V)	120 V	SPDT	Rectangular	15.24 mm	12.7 mm	Black	No Marking	5 A	Solder Lug	28 V	Epoxy Sealed Terminals	Panel Mount Snap-In
TE Connectivity AMP Connectors 1-1571986-2	6000 Cycles	85 °C	-30 °C	On-On	Concave (Standard V)	120 V	SPDT	Rectangular	17.96 mm	10.62 mm	Black	No Marking	5 A	PC Pin	28 V	Epoxy Sealed Terminals	Flange Panel Mount
TE Connectivity AMP Connectors 1571986-9	6000 Cycles	85 °C	-30 °C	On-On	Concave (Standard V)	120 V	SPDT				Red	No Marking	5 A	PC Pin	28 V	Epoxy Sealed Terminals	Right Angle Through Hole
TE Connectivity AMP Connectors 2-1571986-9	6000 Cycles	85 °C	-30 °C	On-On	Concave (Standard V)	20 V	SPDT	Rectangular	15.75 mm	12.7 mm	Black	No Marking	0.4 VA	PC Pin	20 V	Epoxy Sealed Terminals	Panel Mount Snap-In
TE Connectivity AMP Connectors 1-1571986-5
TE Connectivity AMP Connectors 1-1571986-6	6000 Cycles	85 °C	-30 °C	On-On	Concave (Standard V)	20 V	SPDT	Rectangular	17.96 mm	10.62 mm	Black	No Marking	0.4 VA	Solder Lug	20 V	Epoxy Sealed Terminals	Flange Panel Mount
TE Connectivity AMP Connectors 2-1571986-1	6000 Cycles	85 °C	-30 °C	On-On	Concave (Standard V)	120 V	SPDT				Red	No Marking	5 A	PC Pin	28 V	Epoxy Sealed Terminals	Through Hole
TE Connectivity AMP Connectors 1-1571986-9	6000 Cycles	85 °C	-30 °C	On-On	Paddle	20 V	SPDT	Rectangular	17.96 mm	10.62 mm	White	No Marking	0.4 VA	Solder Lug	20 V	Epoxy Sealed Terminals	Flange Panel Mount
TE Connectivity AMP Connectors 5-1571986-9	6000 Cycles	85 °C	-30 °C	Mom-Off-Mom	Concave (Standard V)	120 V	SPDT	Rectangular	27.81 mm	16.46 mm	Black	No Marking	5 A	Solder Lug	28 V	Epoxy Sealed Terminals	Flange Panel Mount
