3430 A2 1% 390R 100ppm 1k RL-6-2176554-4
Resistors

3430A2F2K7TD

Active
TE Connectivity AMP Connectors

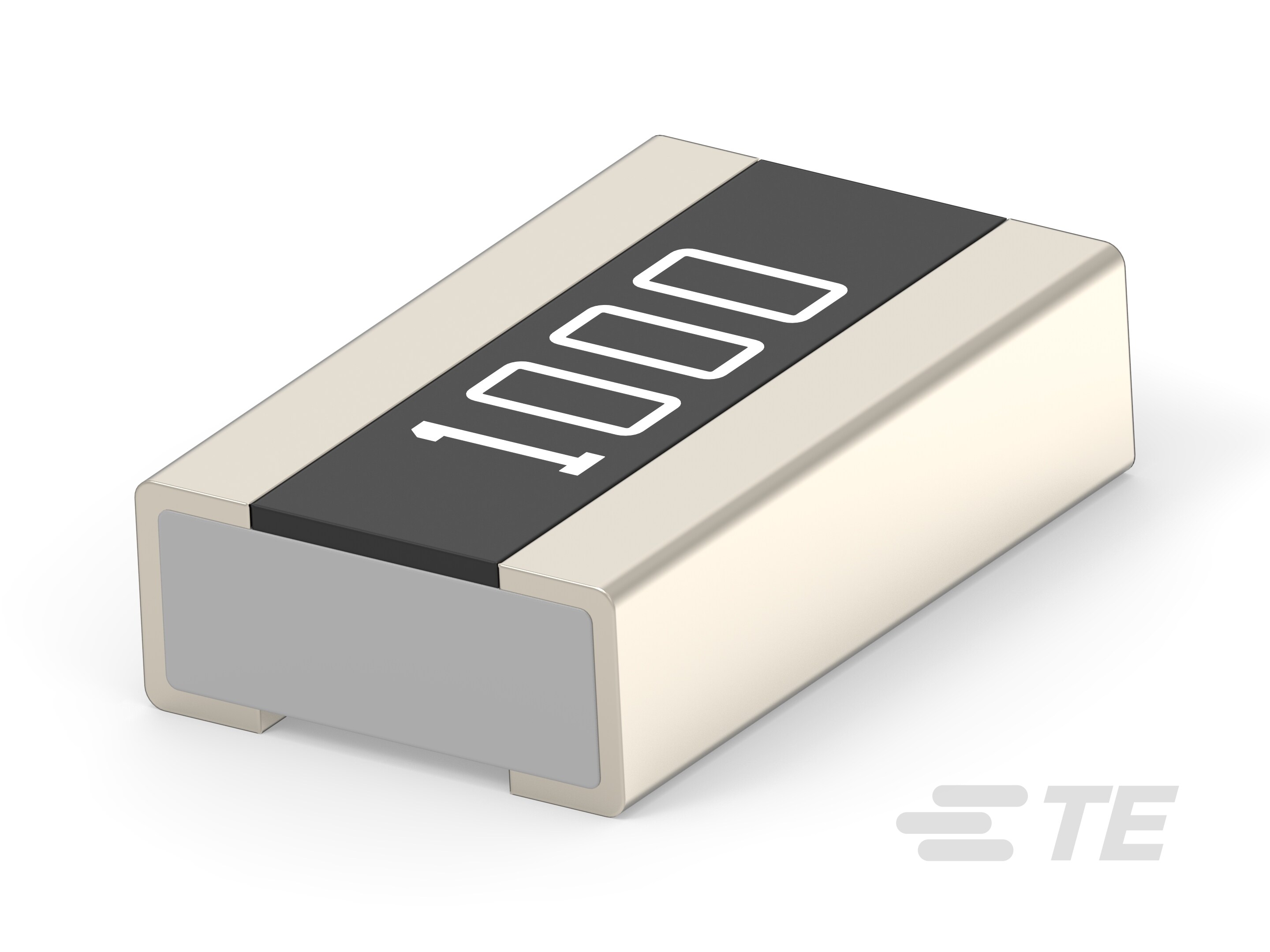

SMD CHIP RESISTOR, 2.7 KOHM, ± 1%, 1 W, 0508 WIDE [1220 METRIC], THICK FILM, HIGH POWER

3430 A2 1% 390R 100ppm 1k RL-6-2176554-4
Resistors

3430A2F2K7TD

Active
TE Connectivity AMP Connectors

SMD CHIP RESISTOR, 2.7 KOHM, ± 1%, 1 W, 0508 WIDE [1220 METRIC], THICK FILM, HIGH POWER

Technical Specifications

Parameters and characteristics for this part

Specification3430A2F2K7TD
CompositionThick Film
FeaturesAutomotive AEC-Q200
Height - Seated (Max)0.026 in
Number of Terminations2
Operating Temperature (Max)155 °C
Operating Temperature (Min)-55 °C
Package / Case0508, Wide 0805 (2012 Metric)
Package Name0508
Power (Watts)1 W
RatingsAEC-Q200
Resistance2.7 kOhm
Size / Dimension Length0.049 in
Size / Dimension Width0.079 in
Temperature Coefficient100 ppm/°C
Tolerance1 %

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$Updated
DigikeyTape & Reel (TR) 5000$ 0.03<6d
NewarkEach (Supplied on Cut Tape) 1$ 0.0330d+
50000$ 0.03
100000$ 0.03
250000$ 0.03
500000$ 0.03

CAD

3D models and CAD resources for this part

Description

General part information

CGS 3430 Series

2.7K ohm, Surface Mount Power Resistor, Thick Film, 0508, 1 W, 1 %, ±100 ppm/°C, Solder, 2 Terminations, .55 mm [.022 in] Height, CGS 3430
