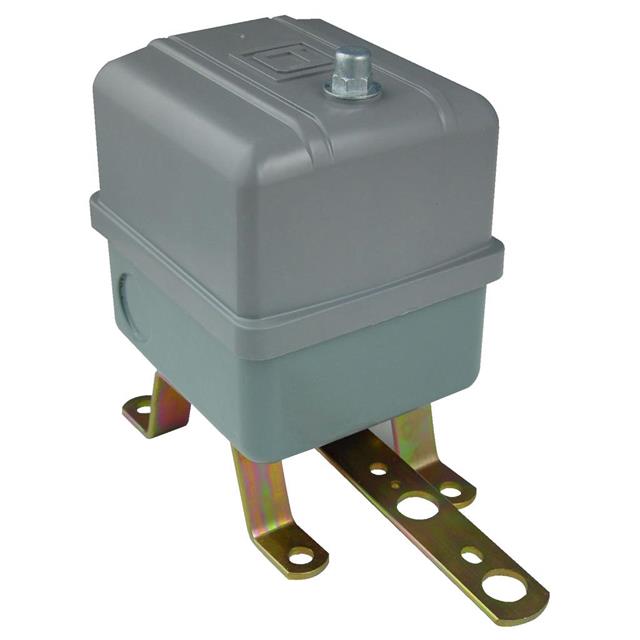

9036GG2H
ActiveSCHNEIDER ELECTRIC
FLOAT SWITCH, 575 V, VERTICAL, DPST-NC/NO-DB, NEMA 1, -30° C TO 93° C
9036GG2H
ActiveSCHNEIDER ELECTRIC
FLOAT SWITCH, 575 V, VERTICAL, DPST-NC/NO-DB, NEMA 1, -30° C TO 93° C
Description
General part information
9036GG2H
FLOAT SWITCH, 575 V, VERTICAL, DPST-NC/NO-DB, NEMA 1, -30° C TO 93° C
Technical Specifications
Parameters and characteristics for this part
| Specification | 9036GG2H |
|---|---|
| Housing Material | Polyphenylene (PPE) |
| Minimum Liquid Specific Gravity | 0.85 |
| Mounting Type | Chassis Mount, Screw Mount |
| Operating Temperature (Max) | 104 °C |
| Operating Temperature (Min) | -30 °C |
| Output Configuration | SPST-NC, NO |
| Output Type | Switch |
| Prism Material | Thermoplastic |
| Type | Liquid |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
