Description
General part information

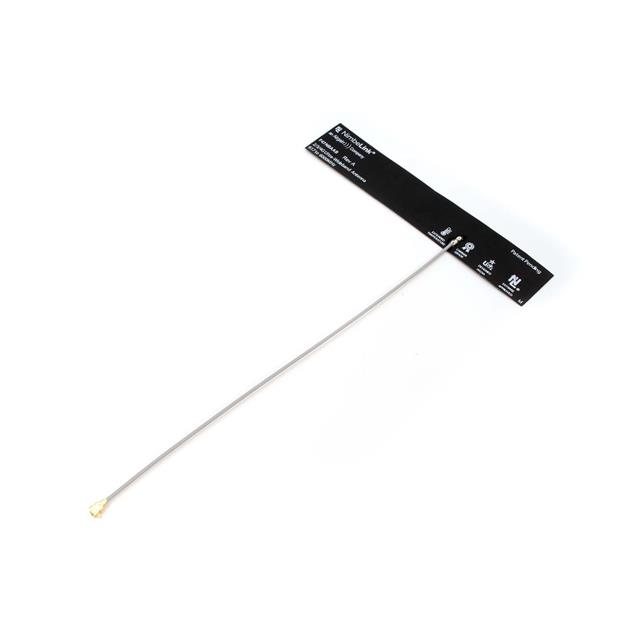

F47NBAAB-G150U
RF ANTENNA 2G, 3G, 4G, LTE FlexPIFA U.FL Adhesive
Technical Specifications
Parameters and characteristics for this part
| Specification | F47NBAAB-G150U |
|---|---|
| Antenna Type | FlexPIFA |
| Applications | LTE, 3G, 4G, 2G |
| Features | Cable, 150mm |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 698 MHz |
| Frequency Range (Band 2) Maximum | 1.61 GHz |
| Frequency Range (Band 2) Minimum | 1.55 GHz |
| Frequency Range (Band 3) Maximum | 2.7 GHz |
| Frequency Range (Band 3) Minimum | 1.7 GHz |
| Gain | 3.7 dBi, 2.9 dBi, 2.5 dBi |
| Mounting Type | Adhesive |
| Number of Bands | 4 |
| RF Family/Standard | Cellular |
| Termination | U.FL |
| VSWR | 1 |
| VSWR Maximum | 2.5 |
| VSWR Minimum | 1 |
