MAL213228478E3
ActiveVishay Dale

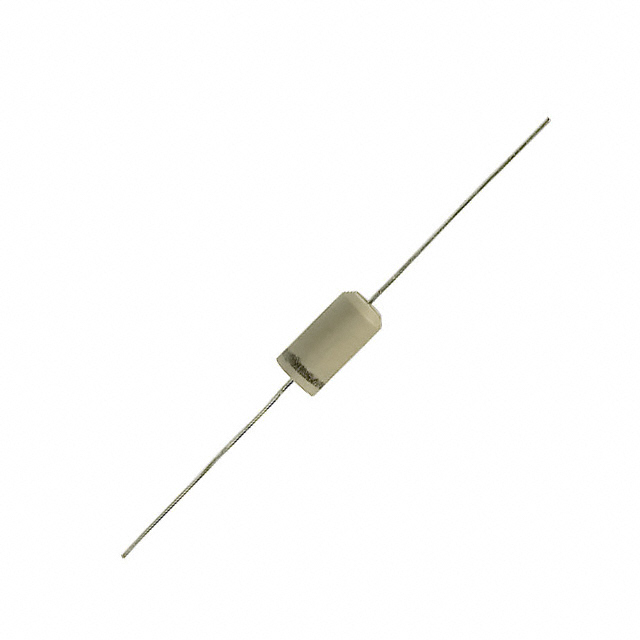

CAP ALUM 4.7UF 63V AXIAL TH
MAL213228478E3
ActiveVishay Dale
CAP ALUM 4.7UF 63V AXIAL TH
Description
General part information
MAL213228478E3
4.7 µF 63 V Aluminum Electrolytic Capacitors Axial, Can 24Ohm @ 100Hz 10000 Hrs @ 85°C
Technical Specifications
Parameters and characteristics for this part
| Specification | MAL213228478E3 |
|---|---|
| Applications | General Purpose |
| Capacitance | 4.7 µF |
| ESR (Equivalent Series Resistance) | 24 Ohm |
| Impedance | 5 Ohm |
| Lifetime | 10000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package / Case | Can, Axial |
| Polarization | Polar |
| Ripple Current | 38 mA |
| Size / Dimension Diameter | 0.256 in |
| Size / Dimension Length | 0.709 in |
| Tolerance (Negative) | 10 % |
| Tolerance (Positive) | 50 % |
| Voltage - Rated | 63 V |
