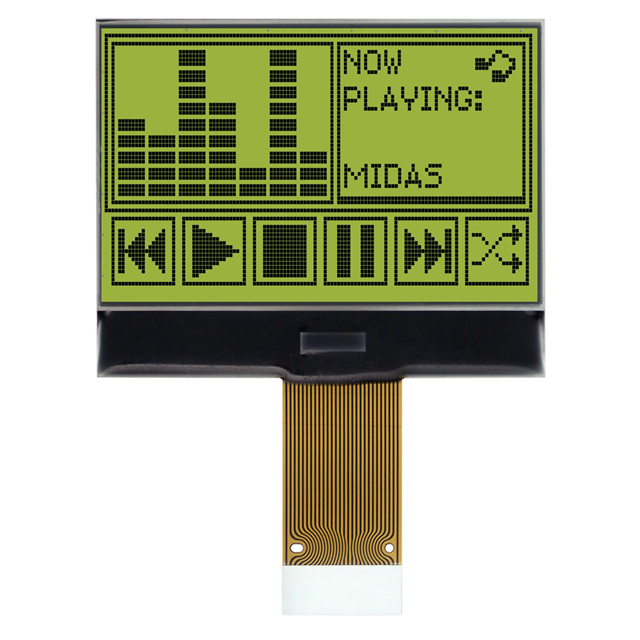

MCCOG128064B12W-SPR
ActiveMidas Displays
128 X 64 GRAPHIC CHIP-ON-GLASS L
MCCOG128064B12W-SPR
ActiveMidas Displays
128 X 64 GRAPHIC CHIP-ON-GLASS L
Description
General part information
MCCOG128064B12W-SPR
Graphic LCD Display Module Reflective Black STN - Super-Twisted Nematic Parallel, SPI 128 x 64
Technical Specifications
Parameters and characteristics for this part
| Specification | MCCOG128064B12W-SPR |
|---|---|
| Background Color | Yellow, Green |
| Backlight | Without Backlight |
| Controller Type | ST7565P |
| Diagonal Screen Size | 2.33 in |
| Display Mode | Reflective |
| Display Type | STN - Super-Twisted Nematic |
| Dot Pixels (Horizontal) | 128 pixels |
| Dot Pixels (Vertical) | 64 pixels |
| Graphics Color | Black |
| Interface | Parallel, SPI |
| Touchscreen | Non-Touch |
| Viewing Area Height | 31 mm |
| Viewing Area Width | 50.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Sign in to see pricing
Create a free account to access distributor pricing data.
CAD
3D models and CAD resources for this part
Documents
Technical documentation and resources
