1004112-C003

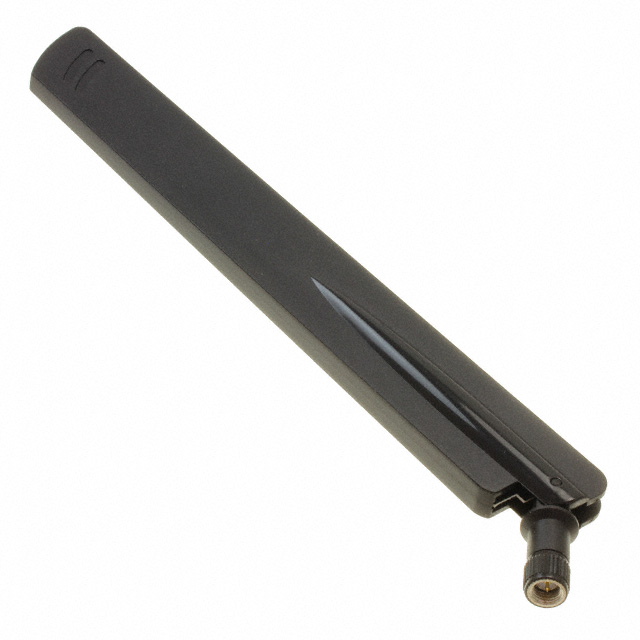

RF ANTENNA ISM, LoRa, LPWAN, LTE, Sigfox Whip, Tilt SMA Male Connector Mount
Technical Specifications
Parameters and characteristics for this part
| Specification | 1004112-C003 |
|---|---|
| Antenna Type | Tilt, Whip |
| Applications | LTE, LPWAN, Sigfox, ISM, LoRa |
| Frequency (Center/Band) | 2.7GHz, 1.9GHz, 2.1GHz, 850MHz, 750MHz, 700MHz, 900MHz, 1.8GHz |
| Frequency (Center/Band) - 1 | 700 MHz |
| Frequency (Center/Band) - 2 | 750 MHz |
| Frequency (Center/Band) - 3 | 850 MHz |
| Frequency (Center/Band) - 4 | 900 MHz |
| Frequency (Center/Band) - 5 | 1.8 GHz |
| Frequency (Center/Band) - 6 | 1.9 GHz |
| Frequency (Center/Band) - 7 | 2.1 GHz |
| Frequency (Center/Band) - 8 | 2.7 GHz |
| Frequency Group | Wide Band |
| Frequency Range (Band 1) Maximum | 960 MHz |
| Frequency Range (Band 1) Minimum | 690 MHz |
| Frequency Range (Band 2) Maximum | 2.2 GHz |
| Frequency Range (Band 2) Minimum | 1.71 GHz |
| Frequency Range (Band 3) Maximum | 2.7 GHz |
| Frequency Range (Band 3) Minimum | 2.5 GHz |
| Gain | 1.18 dBi, 4 dBi, 4.5 dBi |
| Height (Max) | 8.591 in |
| Mounting Type | Connector Mount |
| Number of Bands | 8 |
| RF Family/Standard | Cellular |
| Termination Type | SMA Male |
| VSWR | 2.5 |
