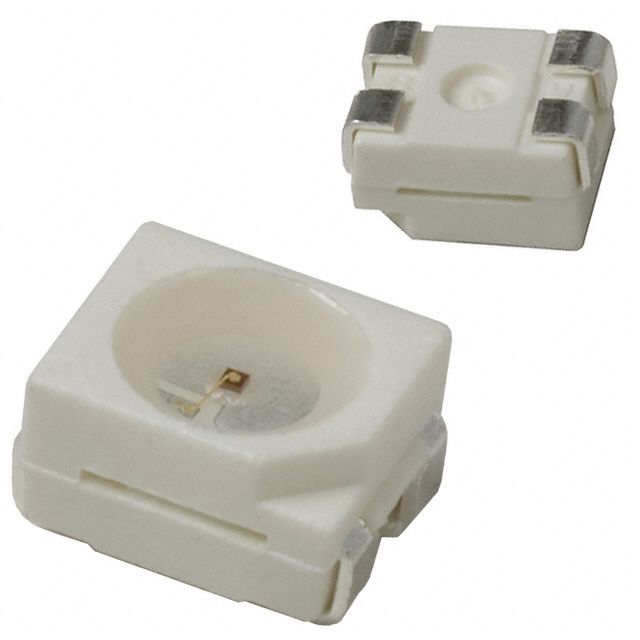

OVSAABC2R8
ObsoleteTT Electronics/BI
LED AMBER CLEAR 4PLCC SMD
OVSAABC2R8
ObsoleteTT Electronics/BI
LED AMBER CLEAR 4PLCC SMD
Description
General part information
OVSAABC2R8
Amber 591nm LED Indication - Discrete 2.6V 4-PLCC
Technical Specifications
Parameters and characteristics for this part
| Specification | OVSAABC2R8 |
|---|---|
| Color | Amber |
| Configuration | Standard |
| Current - Test | 50 mA |
| Height (Max) | 1.95 mm |
| Lens Color | Colorless |
| Lens Style | Round, Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 700 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 4-PLCC |
| Package Name | 4-PLCC |
| Size / Dimension Length | 3.2 mm |
| Size / Dimension Width | 2.8 mm |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.6 V |
| Wavelength - Dominant | 591 nm |
