XS612B4NAL2
ActiveSCHNEIDER ELECTRIC

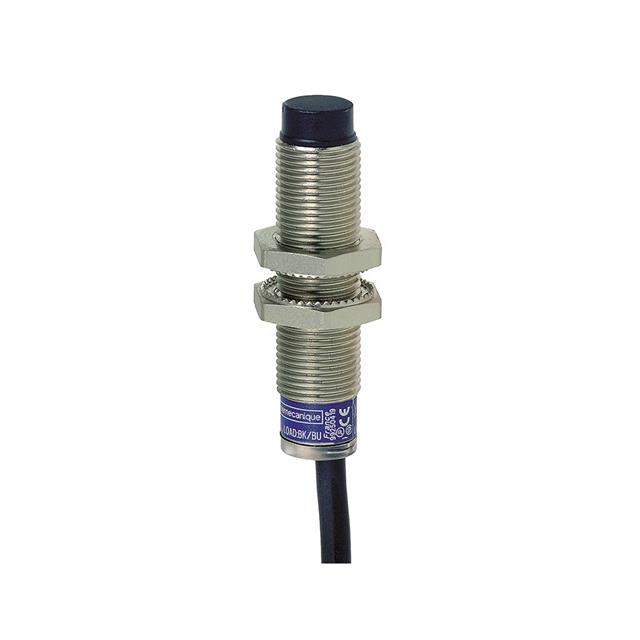

INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M12, 7MM, NPN, 12 TO 48V
XS612B4NAL2
ActiveSCHNEIDER ELECTRIC
INDUCTIVE PROXIMITY SENSOR, CYLINDRICAL, OSISENSE XS, M12, 7MM, NPN, 12 TO 48V
Description
General part information
XS612B4NAL2
Inductive Proximity Sensor 0.276" (7mm) IP68, IP69K Cylinder, Threaded - M12
Technical Specifications
Parameters and characteristics for this part
| Specification | XS612B4NAL2 |
|---|---|
| Indicator | LED |
| Ingress Protection | IP68, IP69K |
| Material - Body | Nickel-Plated Brass |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -25 °C |
| Output Type | 3-Wire, NPN-NO |
| Package / Case | Threaded - M12, Cylinder |
| Sensing Distance | 0.276 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Cable Leads |
| Voltage - Supply (Maximum) | 48 VDC |
| Voltage - Supply (Minimum) | 12 VDC |
