Description
General part information

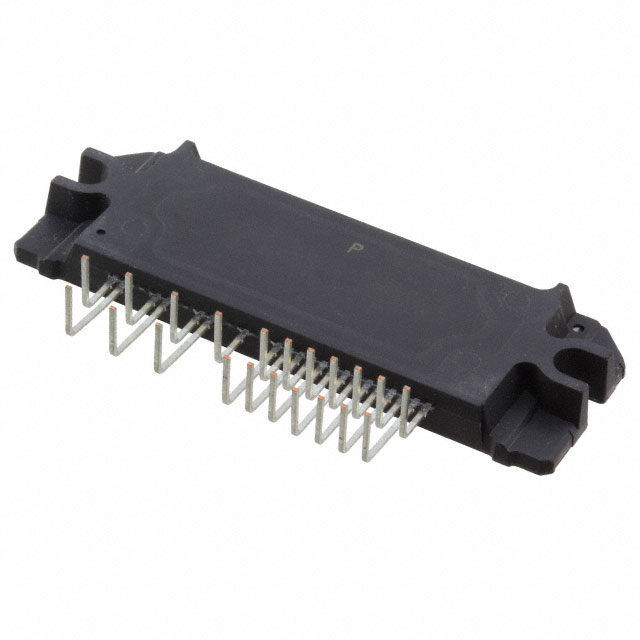

IRAM136-1061A
Power Driver Module IGBT 3 Phase 600 V 12 A 29-PowerSSIP Module, 21 Leads, Formed Leads
Technical Specifications
Parameters and characteristics for this part
| Specification | IRAM136-1061A |
|---|---|
| Channel Count | 3 |
| Configuration | Phase |
| Current | 12 A |
| Mounting Type | Through Hole |
| Package Leads | 21 Leads |
| Package Name | 29-PowerSSIP Module |
| Type | IGBT |
| Voltage | 600 V |
| Voltage - Isolation | 2000 V |
