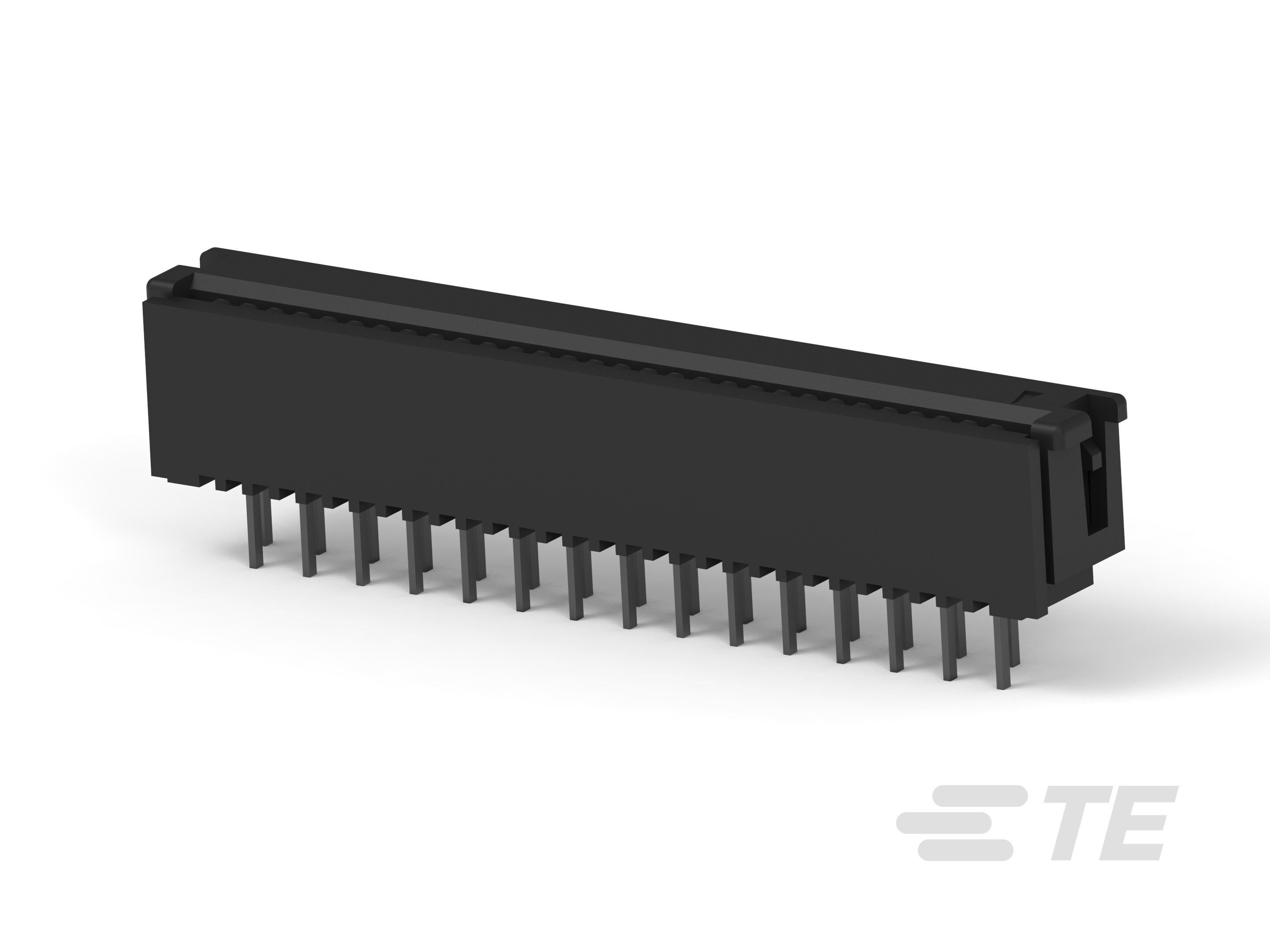

30 ZIF LINE 50 ASSY-2-487576-2

2-487576-2

Active
TE Connectivity AMP Connectors

30 ZIF LINE 50 ASSY ROHS COMPLIANT: YES

Find alt
30 ZIF LINE 50 ASSY-2-487576-2

2-487576-2

Active
TE Connectivity AMP Connectors

30 ZIF LINE 50 ASSY ROHS COMPLIANT: YES

Find alt

Description

General part information

ZIF LINE Series

Connector Assembly, Wire-to-Board, 30 Position, 1.27 mm [.05 in] Centerline, 2 Row, Vertical, Socket, Tube, ZIF LINE, FFC Connectors

Technical Specifications

Parameters and characteristics for this part

Specification2-487576-2
Actuator MaterialThermoplastic
Cable End TypeStraight
Connector/Contact TypeContacts, 1 Sided, Vertical
Contact FinishTin
Contact MaterialPhosphor Bronze
FeaturesZero Insertion Force (ZIF)
FFC, FCB Thickness (Max)0.31 mm
FFC, FCB Thickness (Min)0.1 mm
Flat Flex TypeFFC
Height Above Board0.31 in
Housing MaterialThermoplastic
Locking FeatureSlide Lock
Mounting TypeThrough Hole
Number of Positions30
Operating Temperature (Max)105 °C
Operating Temperature (Min)-55 °C
Pitch0.05 in
TerminationSolder
Voltage Rating150 VDC
