6-917354-1
ActiveTE Connectivity AMP Connectors

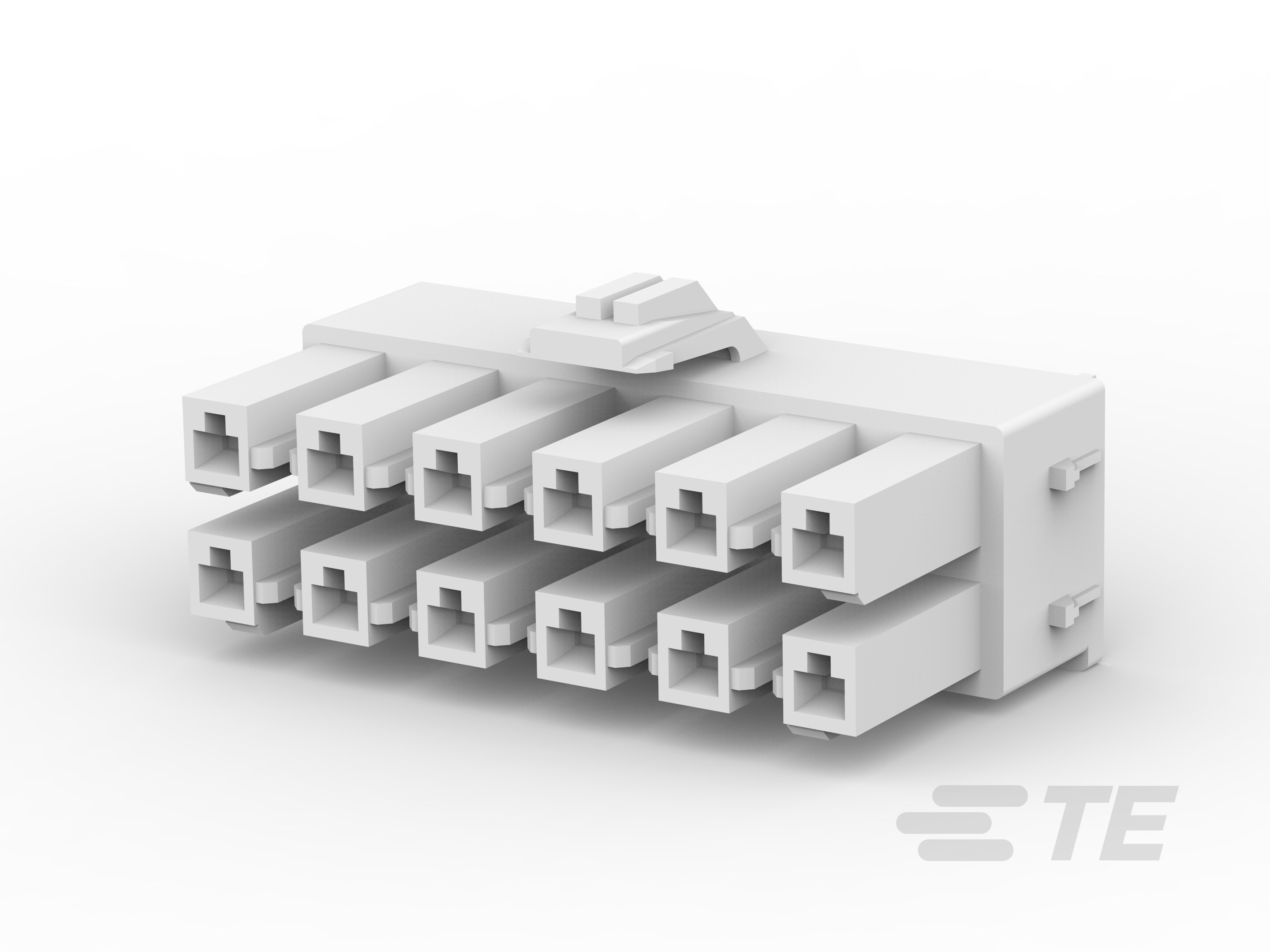

AMP POWER D/LOCK PLUG HSG 12P NAT(GWT)
6-917354-1
ActiveTE Connectivity AMP Connectors
AMP POWER D/LOCK PLUG HSG 12P NAT(GWT)
Description
General part information
6-917354-1
12 Position, Plug, Housing, Crimp, Wire-to-Wire, UL 94V-0, 6.5 mm [.256 in] Centerline, 2 Row, 300 VAC, Wire & Cable, Power, Power Double Lock
Technical Specifications
Parameters and characteristics for this part
| Specification | 6-917354-1 |
|---|---|
| Color | Natural |
| Connector Type | Plug |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Fastening Type | Latch Lock |
| Features | Glow Wire Compliant |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 12 |
| Number of Rows | 2 |
| Operating Temperature (Max) | 105 °C |
| Operating Temperature (Min) | -30 °C |
| Pitch | 0.256 in |
| Row Spacing | 0.256 in |
