PV2000FC
ActiveDC/AC INVERTER, POWERVERTER, ITE, 12 VDC, 2 OUTLETS, 120 VAC, 2000 W

PV2000FC
ActiveDC/AC INVERTER, POWERVERTER, ITE, 12 VDC, 2 OUTLETS, 120 VAC, 2000 W
Description
General part information
PV2000FC

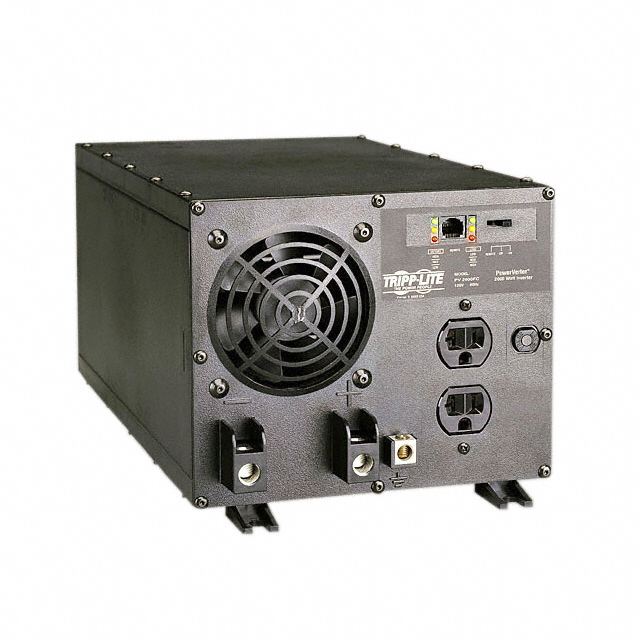

The PV2000FC is a 120V/2kW 2-output AC/DC Inverter with polycarbonate construction. Continuously supplies up to 2000W of 120VAC power to 2AC outlets from any 12V battery or automotive DC source. Frequency control locks AC output at 60Hz for operating stability of motor loads. Includes a set of high-current DC input terminals for simple, permanent installation. Highly reliable large transformer design specializes in powering motors and other inductive loads with high-current start-up needs. Built-in RJ45 port allows connection of APS/PowerVerter remote switch. 3-position on/off/remote switch enables simple on/off power control plus remote setting that enables distant on/off control of the inverter system when used in conjunction with optional APSRM4 accessory. Mounting slots enable permanent placement of inverter on any horizontal surface.
Technical Specifications
Parameters and characteristics for this part
| Specification | PV2000FC |
|---|---|
| AC Outlets (Count) | 2 count |
| Connector - AC Output | NEMA 5-20R |
| Connector - Voltage Input | Terminals |
| Features | Frequency Control |
| Power - Output Continuous | 2000 VA |
| Power - Output Surge | 4 kW |
| Region Utilized | North America |
| Remote Capability | Yes |
| Size Height | 7.25 " |
| Size Length | 16.25 " |
| Size Width | 8.5 " |
| Type | Inverter |
| Voltage - Input | 12 V |
| Voltage - Output | 120 V |
| Weight | 39 lbs |
