BA132
ActivePasternack

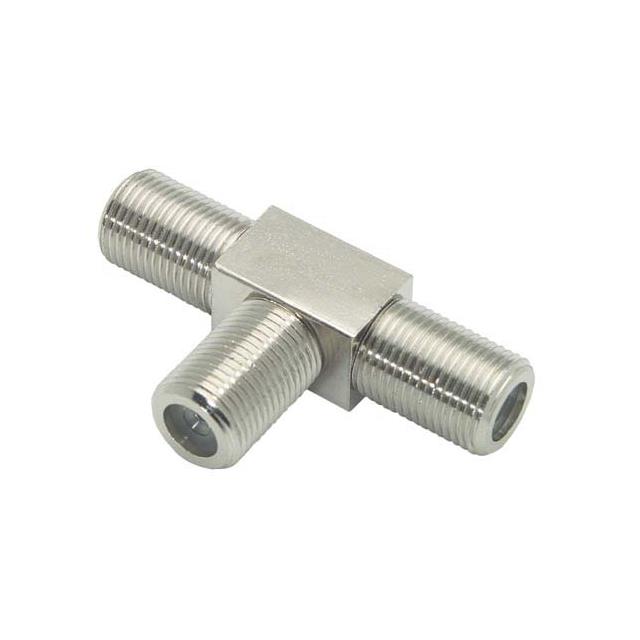

ADAPTOR F F/F F TEE
BA132
ActivePasternack
ADAPTOR F F/F F TEE
Description
General part information
BA132
Adapter Coaxial Connector F Jack, Female Socket To F Jack, Female Socket (2) 75 Ohms
Technical Specifications
Parameters and characteristics for this part
| Specification | BA132 |
|---|---|
| Adapter Series | Dual, F to F |
| Adapter Type | Jack to Jack |
| Body Finish | Nickel |
| Body Material | Brass |
| Center Contact Material | Phosphor Bronze |
| Center Contact Plating | Tin |
| Center Gender | Female |
| Conversion Type | Same Series |
| Convert From (Adapter End) | Female Socket, F Jack |
| Convert To (Adapter End) | F Jack, Female Socket |
| Convert To (Adapter End) Count | 2 count |
| Dielectric Material | Polypropylene (PP) |
| Fastening Type | Threaded |
| Impedance | 75 Ohm |
| Mounting Type | Free Hanging (In-Line) |
| Style | T-Shape |
