ActiveTE Connectivity AMP Connectors

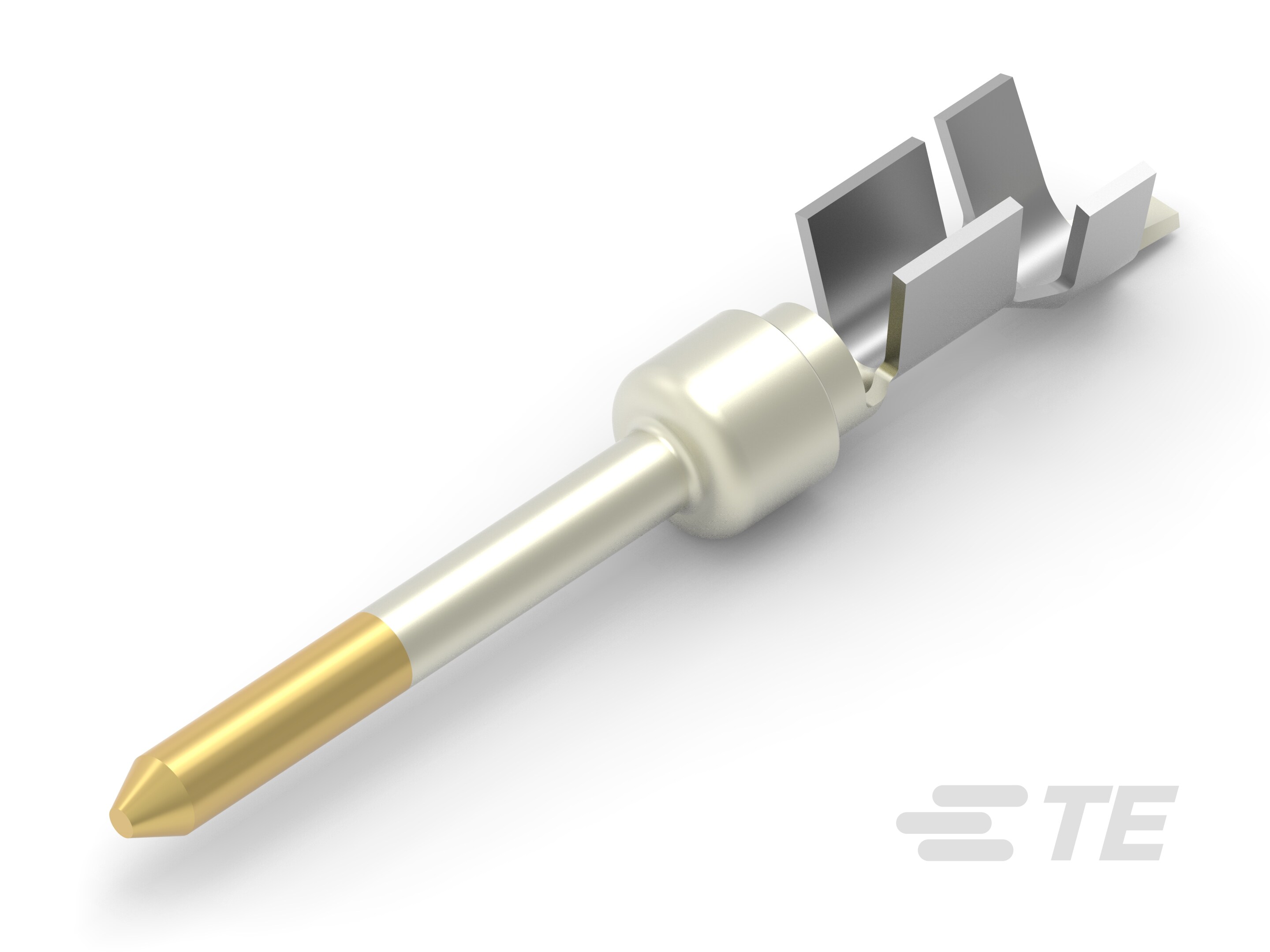

PIN CONT DUPL PLT LP HD-20 AMP
1658539-3
ActiveTE Connectivity AMP Connectors
PIN CONT DUPL PLT LP HD-20 AMP
Description
General part information
Circular Plastic Connectors Series 2 Series
Pin Contact, Gold (Au), Snap-In Contact Retention, Size 20 Contact Size, 24 – 20 AWG, .2 – .6 mm² Wire, Crimp, Circular Plastic Connectors Series 2
Technical Specifications
Parameters and characteristics for this part
| Specification | 1658539-3 |
|---|---|
| Contact Finish | Gold |
| Contact Finish Thickness | 30 µin |
| Contact Material | Brass |
| Contact Termination | Crimp |
| Pin or Socket | Pin |
| Type | Stamped |
| Wire Gauge (AWG) (Max) | 24 AWG |
| Wire Gauge (AWG) (Min) | 19.5 AWG |
