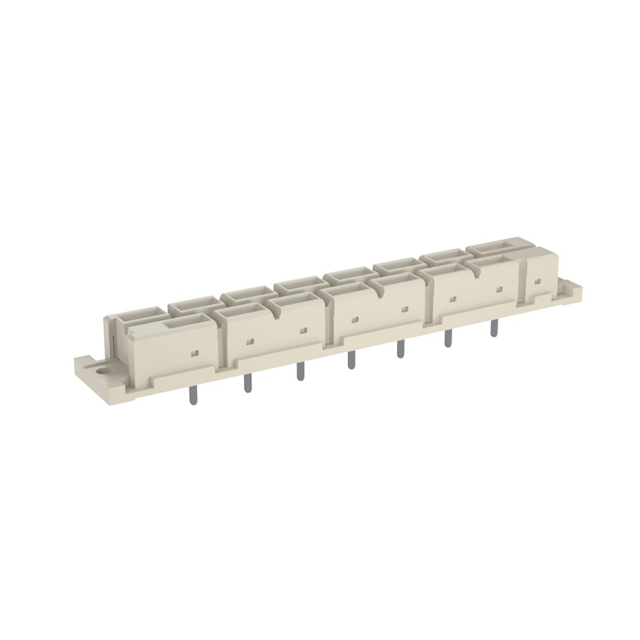

Specification	594750-E

Connector Type	Receptacle, Female Blade Sockets
Contact Finish	Silver
Contact Material	Copper Alloy
Current Rating	15 A
Fastening Type	Push-Pull
Features	Flange
Material - Insulation	Polycarbonate, Glass Filled
Mounting Type	Through Hole
Number of Positions	15
Number of Rows	2
Operating Temperature (Max)	125 °C
Operating Temperature (Min)	-55 °C
Pitch	0.3 in
Termination	Solder
